Custom Bomba centrífuga monocelular de un solo impulsor IRG/ISW Suppliers, OEM Factory

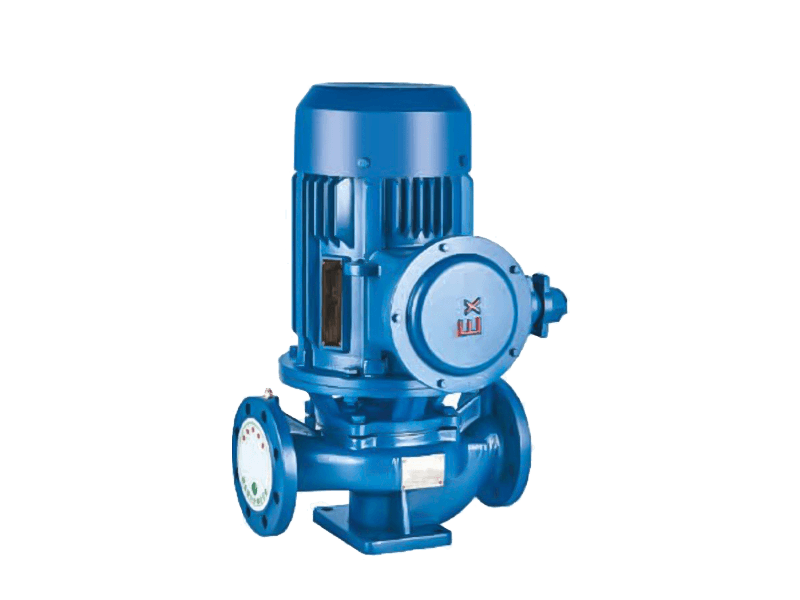

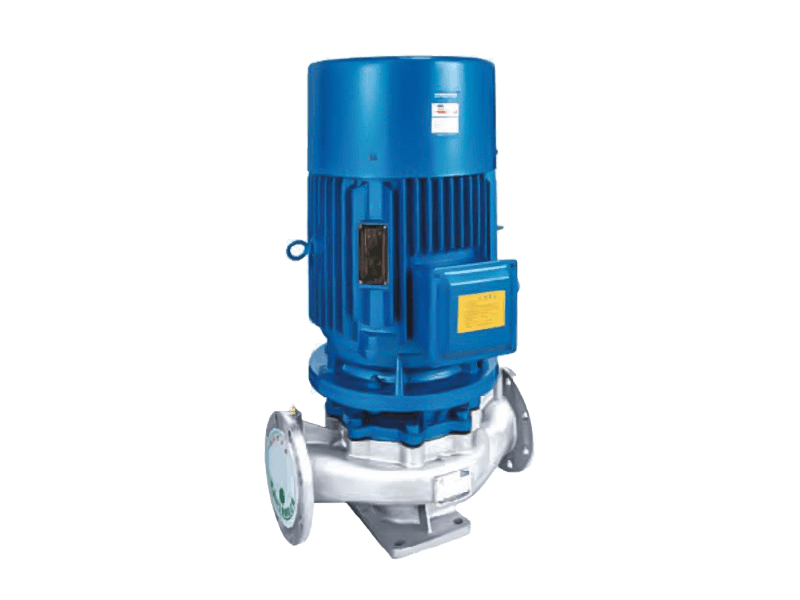

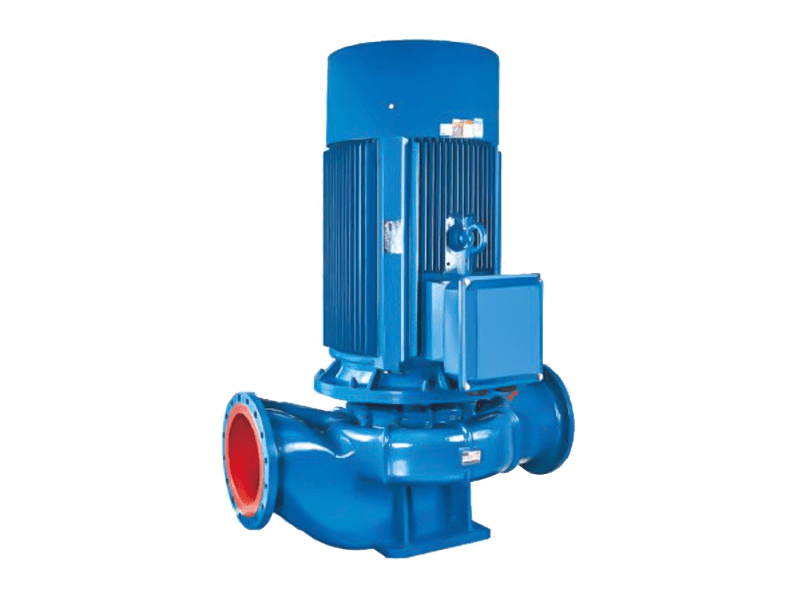

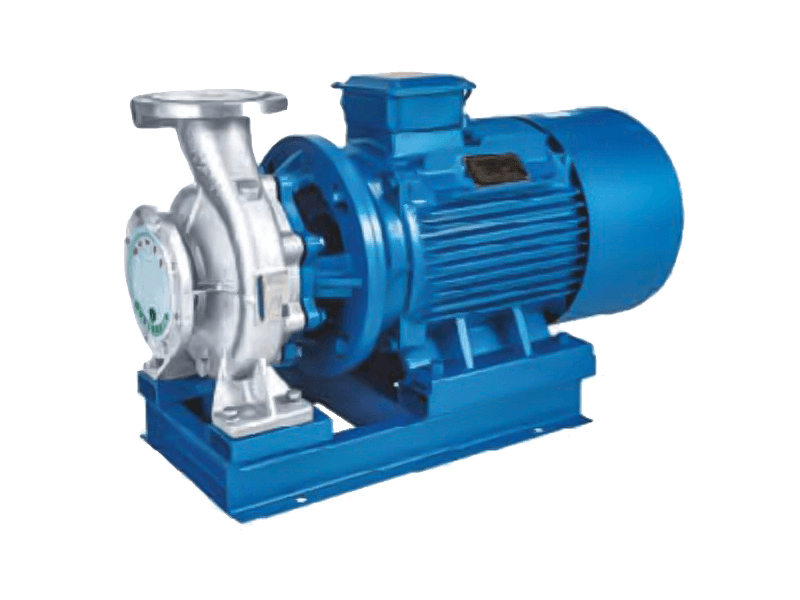

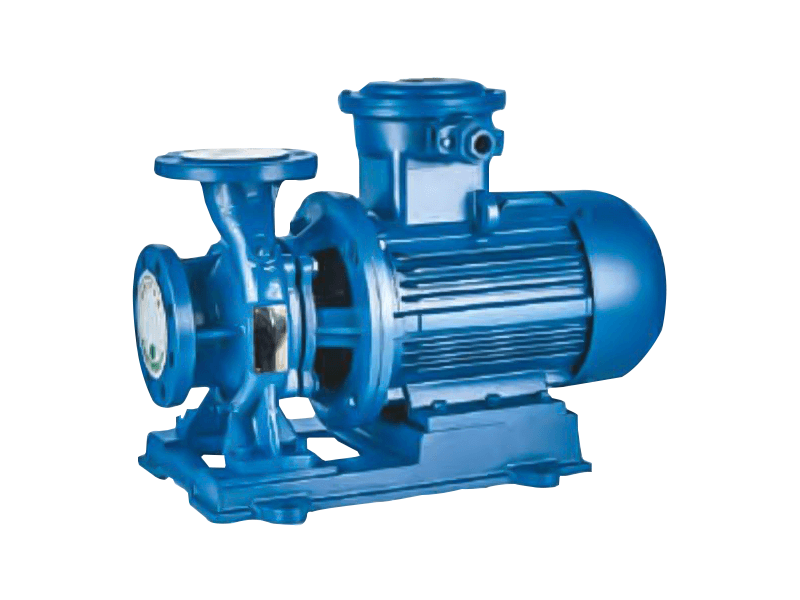

Bomba centrífuga monocelular de un solo impulsor IRG/ISW Custom

Inicio / Productos / Bombas de Agua / Serie IRG/ISW / Bomba centrífuga monocelular de un solo impulsor IRG/ISW

Condiciones de uso:

1. La presión máxima del sistema de la bomba es de 1.6 MPa, es decir, la suma de la presión de entrada + la altura de la bomba ≤ 1.6 MPa. (Por favor, indique la presión de trabajo al realizar el pedido. Si esta supera los 1.6 MPa, debe especificarse para fabricar las piezas en contacto con el fluido en hierro fundido reforzado).

2. Medio aplicable: el contenido de sólidos insolubles no debe superar el 0.1% del volumen, y el tamaño de partícula no debe superar los 0.2 mm. (Si el medio contiene partículas finas, se debe usar un sello mecánico resistente al desgaste. Especifíquelo al realizar el pedido).

3. Temperatura ambiente: no mayor a 40°C; humedad relativa: ≤ 95%; altitud: ≤ 1000 m.

Fecha técnica

TIPO	Datos limitados(m³/h )	Elevador nominal(m)	Fuerza(kw)	Fuente de alimentación(V/Hz)	Diámetro de la tubería	Velocidad(r/min)
25-125	4	20	0.75	220/50 380/50	25	3000
25-160	4	32	1.5	220/50 380/50	25	3000
32-125	5	20	0.75	220/50 380/50	32	3000
40-125	6.3	20	1.1	220/50 380/50	40	3000
40-125A	11	16	1.1	220/50 380/50	40	3000
40-160	6.3	32	2.2	220/50 380/50	40	3000
40-200	6.3	50	4	380/50	40	3000
40-250	6.3	80	7.5	380/50	40	3000
50-125A	11	16	1.1	220/50 380/50	50	3000
50-125	12.5	20	1.5	220/50 380/50	50	3000
50-160A	11.7	28	2.2	220/50 380/50	50	3000
50-160	12.5	32	3	380/50	50	3000
50-200A	11.7	44	4	380/50	50	3000
50-200	12.5	50	5.5	380/50	50	3000
50-250B	10.8	60	7.5	380/50	50	3000
50-250A	11.6	70	7.5	380/50	50	3000
50-250	12.5	80	11	380/50	50	3000
65-125	25	20	3	380/50	65	3000
65-160	25	32	4	380/50	65	3000
65-200	25	50	7.5	380/50	65	3000
65-250	25	80	15	380/50	65	3000
80-100	50	12.5	3	380/50	80	3000
80-100IA	89	10	4	220/50 380/50	80	3000
80-125	50	20	5.5	220/50 380/50	80	3000
80-160	50	32	7.5	220/50 380/50	80	3000
80-200	50	50	15	380/50	80	3000
80-250	50	80	22	380/50	80	3000
80-250A	46.7	70	18.5	380/50	80	3000
100-100	100	12.5	5.5	380/50	100	3000
100-100I	160	12.5	11	380/50	100	3000
100-125	100	20	11	380/50	100	3000
100-160	100	32	15	380/50	100	3000
100-200	100	50	22	380/50	100	3000
100-250A	93.4	70	30	380/50	100	3000
100-250	100	80	37	380/50	100	3000
150-200A	176	10	11	380/50	150	3000
150-200	200	12.5	15	380/50	150	3000
150-250	200	20	18.5	380/50	150	3000
150-315	200	32	30	380/50	150	3000
150-400	200	50	45	380/50	150	3000
200-200	200	12.5	15	380/50	200	3000
200-200A	179	10	11	380/50	200	3000
200-250	200	20	18.5	380/50	200	3000
200-250A	184.4	17	15	380/50	200	3000
200-315	200	32	30	380/50	200	3000
200-315A	187	28	22	380/50	200	3000
200-400	200	50	45	380/50	200	3000
200-400A	187	44	37	380/50	200	3000
200-400B	174	38	30	380/50	200	3000
200-400C	160	32	22	380/50	200	3000
200-315I	400	32	55	380/50	200	3000
200-315IA	374	28	45	380/50	200	3000
200-315IB	346	24	37	380/50	200	3000
200-400I	400	50	75	380/50	200	3000
200-400IA	374	43.7	75	380/50	200	3000
200-400IB	346	37.4	55	380/50	200	3000
200-400IC	320	32	45	380/50	200	3000
300-300	720	28	75	380/50	300	3000
300-300A	666	24	75	380/50	300	3000
300-300B	623	21	55	380/50	300	3000

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, Bomba centrífuga monocelular de un solo impulsor IRG/ISW, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM Bomba centrífuga monocelular de un solo impulsor IRG/ISW Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom Bomba centrífuga monocelular de un solo impulsor IRG/ISW Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.
