Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos Custom

Inicio / Productos / Motor Asíncrono Trifásico / Serie YD / Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos
Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos
  • Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos
  • Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos

Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos

Product Details

Descripción del producto

Los motores trifásicos multipolares serie YD derivan de la serie Y2, con excelente rendimiento, apariencia atractiva y buena intercambiabilidad con productos similares extranjeros. Clase de protección IP44.

Están diseñados en tres tipos: doble velocidad, triple velocidad y cuádruple velocidad, pudiendo cambiar de velocidad en etapas. Se usan en equipos que requieren cambios de velocidad escalonados, como maquinaria, minería, metalurgia, textiles, impresión, industria química, agricultura, etc. También pueden sustituir cajas reductoras.

Condiciones de operación

Temperatura ambiente: -15℃ ≤ T ≤ 40℃

Altitud: no superior a 1000 m

Voltaje: 380V (±5%)

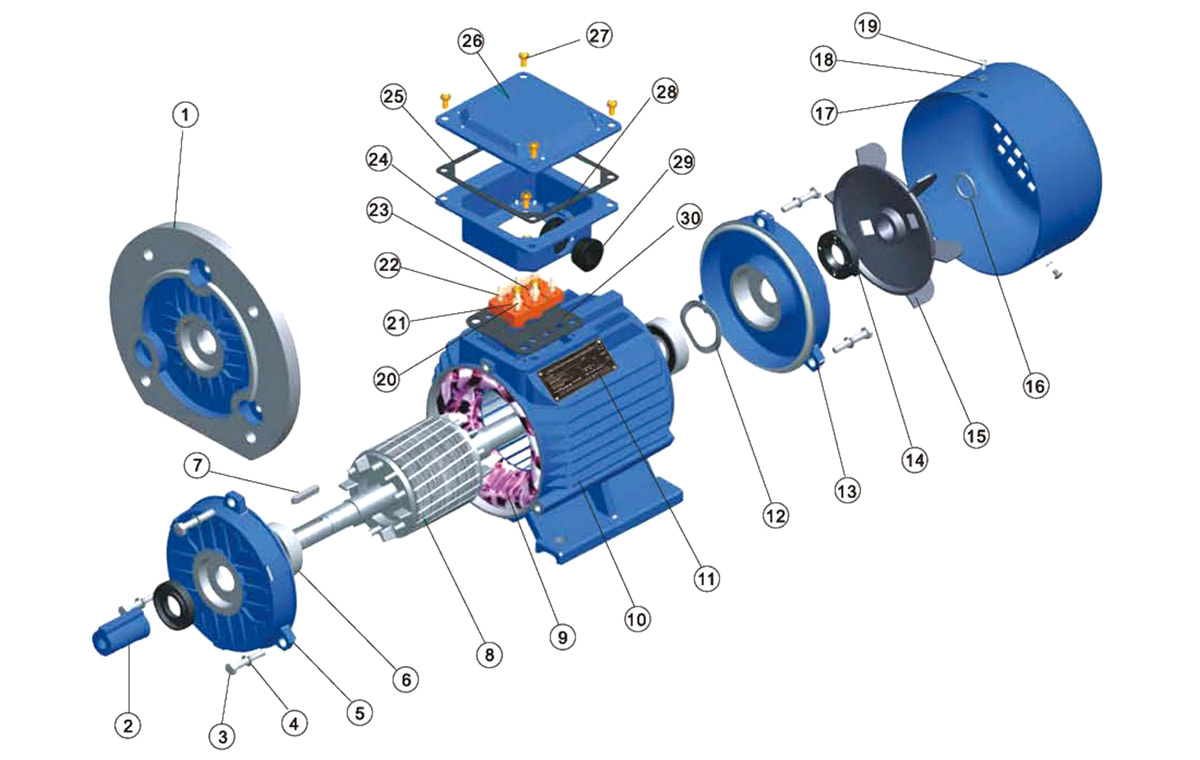

VISTA EXPLOSIVA

1. Brida B5

2. Tapa del eje

3. Tornillo

4. Lavadora de primavera

5. Disimpeor delantero

6. Cojinete

7. Llave

8. Rotor

9. Estator

10. Marco

11. Placa de nombre

12. Forma de onda

13. Paso trasero

14. Sello de aceite （anillo）

15. Admirador

16. Abrazadera

17. Capucha de abanico

18. Arandela

19. Tornillo de capucha de ventilador

20. Lavadora

21. Red de latón

22. Orina de latón

23. Terminal Board

24. Base de caja terminal

25. Empaquetadora

26. Tapa de caja terminal

27. Tornillo

28. Marca de la tierra

29. Chaqueta

30. Lavadora de cuero


Fecha técnica ( 380V 50Hz )

Tamaño de marco

Engañar

(r/min)

Producción

(KW)

Actual

(A)

Eff

(%)

Factor de potencia  (%)

Corriente bloqueada

Par nominal

Ist/In

Torque bloqueado

Par nominal

Tstart/Tn

Torque máximo

Par nominal

Tmax/Tn

YD801

4

1420

0.45

1.4

66

0.74

6.5

1.5

1.8

2

2860

0.55

1.5

65

0.85

7

1.6

1.8

YD802

4

1420

0.55

1.7

68

0.74

6.5

1.5

1.8

2

2860

0.75

2.0

66

0.85

7

1.6

1.8

YD90S

4

1430

0.85

2.3

74

0.77

6.5

1.5

1.8

2

2850

1.1

2.8

73

0.84

7

1.6

1.8

YD90L

4

1430

1.3

3.3

76

0.78

6.5

1.5

1.8

2

2850

1.8

4.3

74

0.84

7

1.6

1.8

YD100L1

4

1430



4.8

78

0.81

6.5

1.5

1.8

2

2850

2.4

5.6

76

0.86

7

1.6

1.8

YD100L2

4

1430

2.4

5.6

79

0.83

6.5

1.5

1.8

2

2850



6.7

77

0.89

7

1.6

1.8

YD112M

4

1450

3.3

7.4

81

0.83

6.5

1.5

1.8

2

2860



8.6

80

0.88

7

1.6

1.8

YD132S

4

1450

4.5

9.8

83

0.84

6.5

1.5

1.8

2

2860

5.5

11.9

79

0.88

7

1.6

1.8

YD132M

4

1450

6.5

13.8

84

0.85

6.5

1.5

1.8

2

2880

8

17.1

80

0.89

7

1.6

1.8

YD160M

4

1460

9

18.5

87

0.85

6.5

1.5

1.8

2

2920

11

22.9

82

0.89

7

1.6

1.8

YD160L

4

1460

11

22.3

87

0.86

6.5

1.5

1.8

2

2920

14

28.8

82

0.90

7

1.6

1.8

YD180M

4

1470

15

29.4

89

0.87

6.5

1.5

1.8

2

2940

18.5

36.7

85

0.90

7

1.6

1.8

YD180L

4

1470

18.5

35.9

89

0.88

6.5

1.5

1.8

2

2940

22

42.7

86

0.91

7

1.6

1.8

YD200L

4

1470

26

49.9

89

0.89

6.5

1.4

1.8

2

2950

30

58.3

85

0.92

7

1.4

1.8

YD225S

4

1480

32

60.7

90

0.89

6.5

1.4

1.8

2

2960

37

71.7

86

0.92

7

1.4

1.8

YD225M

4

1480

37

69.4

91

0.89

6.5

1.4

1.8

2

2960

45

86.4

87

0.92

7

1.4

1.8

YD250M

4

1480

45

84.4

91

0.89

6.5

1.4

1.8

2

2960

55

103.2

88

0.92

7

1.4

1.8

YD280S

4

1480

60

111.3

91

0.90

6.5

1.4

1.8

2

2970

72

135.1

88

0.92

7

1.4

1.8

YD280M

4

1480

72

133.6

91

0.90

6.5

1.4

1.8

2

2970

82

152.2

88

0.93

7

1.4

1.8

YD90S

6

920

0.65

2.2

64

0.70

6

1.4

1.8

4

1420

0.85

2.3

70

0.79

6.5

1.3

1.8

YD90L

6

930

0.85

2.8

66

0.70



1.4

1.8

4

1420

1.1

3.0

71

0.79

6.5

1.3

1.8

YD100L1

6

940

1.3

3.8

74

0.70



1.4

1.8

4

1440

1.8

4.4

77

0.80

6.5

1.3

1.8

YD100L2

6

940

1.5

4.3

75

0.70



1.4

1.8

4

1440

2.2

5.4

77

0.80

6.5

1.4

1.8

YD112M

6

960

2.2

5.7

77

0.75



1.4

1.8

4

1440

2.8

6.7

77

0.82

6.5

1.3

1.8

YD132S

6

960

3

7.7

79

0.70



1,4

1.8

4

1440

4

9.5

80

0.82

6.5

1.3

1.8

YD132M

6

960

4

9.8

81

0.76



1.4

1.8

4

1440

5.5

12.3

80

0.85

6.5

1.3

1.8

YD160M

6

970

6.5

15.1

84

0.78



1.4

1.8

4

1460

8

17.4

83

0.85

6.5

1.3

1.8

YD160L

6

970

9

20.6

85

0.78



1.4

1.8

4

1460

11

23.4

84

0.85

6.5

1.3

1.8

YD180M

6

980

11

25.9

85

0.78



1.4

1.8

4

1470

14

29.8

85

0.85

6.5

1.3

1.8

YD180L

6

980

13

29.4

86

0.78



1.4

1.8

4

1460

16

33.6

85

0.85

6.5

1.3

1.8

YD200L

6

980

18.5

41.4

87

0.78



1.4

1.8

4

1460

22

44.7

87

0.86

6.5

1.3

1.8

YD225S

6

980

22

44.2

88

0.86

6.5

1.4

1.8

4

1470

28

56.2

87

0.87

7

1.3

1.8

YD225M

6

980

26

52.2

88

0.86

6.5

1.4

1.8

4

1470

34

66.0

87

0.90

7

1.3

1.8

YD250M

6

980

32

62.1

90

0.87

6.5

1.4

1.8

4

1470

42

74.7

88

0.91

7

1.3

1.8

YD280S

6

980

42

81.5

90

0.87

6.5

1.4

1.8

4

1480

55

104.2

89

0.90

7

1.3

1.8

YD280M

6

680

55

106.7

90

0.87

6.5

1.4

1.8

4

1420

72

138.1

89

0.89

7

1.3

1.8

YD90L

8

700

0.45

1.9

58

0.63

5.5

1.5

1.8

4

1420

0.75

1.92

72

0.87

6.5

1.5

1.8

YD100L

8

700

0.85

3.1

68

0.63

5.5

1.5

1.8

4

1420

1.5

3.5

75

0.88

6.5

1.5

1.8

YD112M

8

700

1.5

5.0

72

0.63

5.5

1.5

1.8

4

1420

2.4

5.3

78

0.88

6.5

1.5

1.8

YD132S

8

720

2.2

7.0

75

0.64

5.5

1.5

1.8

4

1440

3.3

7.1

80

0.88

6.5

1.5

1.8



Fecha técnica ( 380V 50Hz )

Tamaño de marco

Velocidad

(r/min)

Producción

(kw)

Actual

(A)

Eff

(%)

Factor de potencia  (%)

Corriente bloqueada

Par nominal

Ist/In

Torque bloqueado

Par nominal

Tstsrt/Tn

Torque máximo

Par nominal

Tmax/Tn

YD132M

8

720

3

9.0

78

0.65

5.5

1.5

1.8

4

1440

4.5

9.4

82

0.88

6.5

1.5

1.8

YD160M

8

730

5

139

83

0.66

5.5

1.5

1.8

4

1450

7.5

15.2

84

0.89

6.5

1.5

1.8

YD160L

8

730

7

19.0

85

0.66

5.5

1.5

1.8

4

1450

11

21.8

86

0.89

6.5

1.5

1.8

YD180L

8

730

11

26.0

86

0.74

6

1.5

1.8

4

1470

17

31.5

87

0.92

7

1.5

1.8

YD200L1

8

740

14

33.0

86

0.74

6

1.5

1.8

4

1470

22

41.3

88

0.92

7

1.5

1.8

YD200L2

8

740

17

40.1

87

0.74

6

1.5

1.8

4

1470

26

48.8

88

0.92

7

1.5

1.8

YD225M

8

740

24

53.2

89

0.77

6

1.4

1.8

4

1480

34

66.7

88

0.88

7

1.3

1.8

YD250M

8

740

30

64.9

90

0.78

6

1.4

1.8

4

1480

42

78-8

89

0.91

7

1.3

1.8

YD280S

8

740

40

83.5

91

0.80

6

1.4

1.8

4

1480

55

102

90

0.91

7

1.3

1.8

YD280M

8

680

47

96.9

91

0.81

6

1.4

1.8

4

930

67

122.9

90

0.92

7

1.3

18

YD90S

8

680

0.35

1.6

56

0.60

5

1.4

1.8

6

930

0.45

1.4

70

0.72

6

1.3

1.8

YD90L

8

710

0.45

1.9

59

0.60

5

1.5

1.8

6

950

0.65

1.9

71

0.73

6

1.5

1.8

YD100L

8

710

0.75

2.9

65

0.60

5

1.5

1.8

6

950

1.1

3.1

75

0,73

6

1.5

1.8

YD112M

8

710

1.3

4.5

72

0.61

5

1.5

1.8

6

950

1.8

4.8

78

0.73

6

1.5

1.8

YD132S

8

730

1.8

5.8

75

0.62

5

1.5

1.8

6

970

2.4

6.2

80

0.73

6

1.5

1.8

YD132M

8

730

2.6

8.2

78

0.62

5

1.5

1.8

6

970

3-7

9.4

82

073

6

1.5

1.8

YD160M

8

930

4.5

13.3

83

0.62

5

1.5

1.8

6

980

6

14.7

85

0.73

6

1.5

1.8

YD160L

8

930

6

17.5

84

0.62

5

15

1.8

6

980

8

19.4

86

0.73

6

1.5

10

YD180M

8

930

7.5

21.9

84

0.62

5

1.5

1.8

6

980

10

24.2

86

0.73

6

1.5

1.8

YD180L

8

730

9

24.8

85

0.65

5

1.5

1.8

6

980

12

28.3

86

075

6

1.5

18

YD200L1

8

730

12

32.5

86

0.65

5

1.5

1.8

6

980

17

39.1

87

0.76

6

1.5

18

YD200L2

8

730

15

40.3

87

0.65

5

1.5

1.8

6

980

20

45.4

88

0.76

6

1.5

1.8

YD100L

6/4/2

940/1420/

0.75/1.3/1.8

2.62/3.66/

67/72/71

0.65/0.75/

5.5/6/7

1.8/1.6/1.6

1.8/1.8/1.8

2880

4.53

0.85

YD112M

6/4/2

940/1440/

1.1/2/2.4

3.52/5.14/

73/74/74

0.65/0.81/

5.5/6/7

1.7/1.4/1.6

1.8/1.8/1.8

2890

5.80

0.85

YD132S

6/4/2

940/1440/

1.8/2.6/3

5.14/6.10/

75/78/71

0.71/0.83/

5.5/6/7

1.4/1.3/1.7

1.8/1.8/1.8

2900

7.38

0.87

YD132M1

6/4/2

940/1440/

2.2/3.3/4

6.03/7.46/

77/80/76

0.72/0.84/

5.5/6/7

1.3/1.3/1.7

1.8/1.8/1.8

2900

8.79

0-91

YD132M2

6/4/2

940/1440/

2.6/4/5

6.86/9.04/

80/80/77

0.72/0.84/

5.5/6/7

1.5/1.4/1.7

1.8/1.8/1.8

2900

10.8

0.91

YD160M

6/4/2

940/1440/

3.7/5/6

9.52/11.2/

81/81/76

0.72/0.84/

5.5/6/7

1.5/1.3/1.4

1.8/1.8/1.8

2900

13.2

0.91

YD160L

6/4/2

970/1490/

4.5/7/9

11.4/15.1/

83/83/79

0.72/0.85/

5.5/6/7

1.5/1.2/1.3

1.8/1.8/1.8

2930

18.8

0.92

YD112M

6/4/2

910/1460/

0.65/2/2.4

2.66/5.14/

59/74/74

0.63/0.81/

4.5/6/7

1.4/1.3/1.2

1.8/1.8/1.8

2930

5_80

0.85

YD132S

8/4/2

710/1440/

1/2.6/3

3.16/6.10/

69/78/74

0.61/0.83/

4.5/6/7

1.4/1.2/1.4

1.8/1.8/1.8

2900

7.08

0.87

YD132M

8/4/2

710/1440/

1.3/3.7/4.5

4.56/8.37/

71/80/75

0.61/0.84/

4.5/6/7

1.5/1.3/1.4

1.8/1.8/1.8

2900

10.0

0.91

YD160M

8/4/2

710/1440/

2.275/6

7.55/11.2/

75/81/76

0.59/0.84/

4.5/6Z7

1.4/1.3/1.4

1.8/1.8/1.8

2900

13.2

0.91

YD160L

8/4/2

720/1460/

2.8/7/9

9.21/15.10/

77/83/79

0.60/0.85/

5.5/6.5/7

1.3/1.2/1.3

1.8/1.8/1.8

2930

18.80

0.92

YD112M

8/4/2

710/940/

0.85/1/1.5

3.72/3.06/

62/68/75

0.56/0.73/

5.5/6.5/7

1.4/1.2/1.4

1.8/1.8/1.8

1400

3.53

0.86

YD132S

8/6/4

710/940/

1.1/1.5/1.8

4.10/4.22/

68/74/78

0.60/0.73/

5.5/6.5/7

1.4/1.3/1.3

1.8/1.8/1.8

1440

4.03

0.87

YD132M1

8/6/4

710/940/

1.5/2/2.2

5.18/5.41/

71/77/79

0.62/0.73/

55/6.5/7

1.3/1.5/1.4

1.8/1.8/1.8

1440

4.87

0.87

YD132M2

8/6/4

710/940/

1.8/2.6/3

6.13/6.84/

72/78/80

0.62/0.74/

55/6.5/7

1.5/1.5/1.5

1.8/1.8/1.8

1440

6.55

0.87

YD160M

8/6/4

720/970/

3.3/4/5.5

10.2/9.87/

79/81/83

0.62/0.76/

5.5/6.5/7

1.7/1.4/1.5

1.8/1.8/1.8

1460

11.6

0.87

YD160L

8/6/4

720/970/

4.5/6/7.5

13.8/14.5/

80/83/84

0.62/0.76/

5.5/6.5/7

1.6/1.6/1.5

1.8/1.8/1.8

1460

15.6

0.87



Zhejiang Qizhi Motor Co., Ltd.

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom Motor eléctrico asincrónico trifásico de múltiples velocidades serie YD con cambio de polos Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.

  • 1996

    Founded in

  • 10000㎡

    company area

  • 200+

    Employees

  • 45+

    Exported countries

Zhejiang Qizhi Motor Co., Ltd.

Plant equipment

Related Products
