Motor asincrónico trifásico a prueba de explosión serie YBX3
  • Motor asincrónico trifásico a prueba de explosión serie YBX3
  • Motor asincrónico trifásico a prueba de explosión serie YBX3

Motor asincrónico trifásico a prueba de explosión serie YBX3

Product Details

El motor asincrónico trifásico a prueba de explosión serie YBX3 (tamaños 63-355) se produce según los requisitos de: GB3836.1-2012 [Ambiente explosivo Parte 1: Requisitos generales del equipo], GB3836.2-2010 [Ambiente explosivo Parte 2: Protección por carcasa a prueba de explosión], y MT451-2011 [Especificación general de seguridad para motores asincrónicos trifásicos de bajo voltaje a prueba de explosión para minas]. La marca de explosión es EXDI GB, EXD IIB T4 MB. Es adecuado para equipos en minas con presencia de metano y polvo (EXDI GB), o equipos en lugares con mezcla explosiva de gases inflamables o vapor y aire del tipo II, clase A o B, de T1 a T4 (EXD II AT4 MB, EXD II BT4 MB). Usualmente se utiliza en equipos de potencia.

Range of use and conditions of use:

Representative substance

Substance grouping system

Igniting characteristics

GB3836.1 /IEC60079-0/EN50014

NEC500

Oulhwan

Class Ⅱ C

Class Ⅰ, Group A

Easy

↑

Difficult

Hydrogen, water gas

Class Ⅱ C

Class Ⅰ, Group B

Ethylene, diethyl ether

Class ⅡB

Class Ⅰ, Group C

Ethane, gasoline

Class Ⅱ A

Class Ⅰ, Group D

Methane, ammonia

Class Ⅰ(coal)

(N/A)

Metal dust

Class Ⅲ C

Class Ⅱ, Group E

Coal dust

Class Ⅲ B

Class Ⅱ, Group F

Agricultural dust

Class Ⅲ B

Class Ⅱ,Group G

Fiber (wool, cotton shavings)

Class Ⅲ A

Class Ⅲ

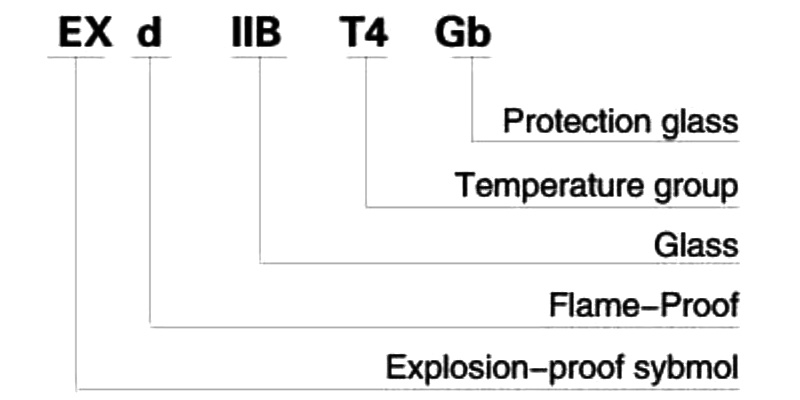

Explosion-proof designation



Technical date

Type No.

Rated output

Current IN(A)

Rated speed (r/min)

EFF %

Power factor cosΦ

Locked torque

Rated torque

TST/TTL

Locked current

Rated torque

IST/TTL

Max torque

Rated torque

TM/TFL

Noise level LW dB(A)

Peso (Kg)
(kW) HP

Synchronous Speed 3000r/min

YBX3-63M1-2

0.18

0.24

0.52

2730

65

0.80

5.6

2.3

2.2

61

1.8

YBX3-63M2-2

0.25

0.33

0.69

2730

68

0.81

5.6

2.3

2.2

61

1.8

YBX3-71M1-2

0.37

0.5

0.99

2750

69

0.81

6.3

2.3

2.2

64

1.8

YBX3-71M2-2

0.55

0.75

1.38

2790

75

0.83

6.3

2.3

2.3

64

1.8

YBX3-80M1-2

0.75

1

1.8

2825

77.5

0.83

6.8

2.3

2.3

62

1.6

YBX3-80M2-2

1.1

1.5

2.43

2825

82.8

0.83

7.3

2.3

2.3

62

1.6

YBX3-90S-2

1.5

2

3.2

2840

84.1

0.84

7.6

2.3

2.3

67

1.6

YBX3-90L-2

2.2

3

4.6

2840

85.6

0.85

7.8

2.3

2.3

67

1.6

YBX3-100L-2

3

4

6.3

2880

86.7

0.87

8.1

2.3

2.3

74

1.6

YBX3-112M-2

4

5.5

7.9

2890

87.6

0.88

8.3

2.3

2.3

77

1.6

YBX3-132S1-2

5.5

7.5

10.7

2900

88.6

0.88

 8

2.2

2.3

79

1.6

YBX3-132S2-2

7.5

10

14.3

2900

89.5

0.89

7.8

2.2

2.3

79

22

YBX3-160M1-2

11

15

20.7

2930

90.5

0.89

7.9

2.2

2.3

81

22

YBX3-160M2-2

15

20

28

2930

91.3

0.89

 8

2.2

2.3

81

22

YBX3-160L-2

18.5

25

34.4

2930

91.8

0.89

8.1

2.2

2.3

81

22

YBX3-180M-2

22

30

40.7

2940

92.2

0.89

8.2

2.2

2.3

83

22

YBX3-200L1-2

30

40

55.1

2950

92.9

0.89

7.5

2.2

2.3

84

22

YBX3-200L2-2

37

50

67.7

2950

93.3

0.89

7.5

2.2

2.3

84

22

YBX3-225M-2

45

60

82

2970

93.7

0.89

7.6

2.2

2.3

86

22

YBX3-250M-2

55

75

99.9

2970

94

0.89

7.6

2.2

2.3

89

22

YBX3-280S-2

75

100

135.3

2970

94.6

0.89

6.9

2

2.3

91

22

YBX3-280M-2

90

125

161.7

2970

95

0.89

 7

2

2.3

91

2.8

YBX3-315S-2

110

150

195.5

2980

95

0.9

7.1

2

22

92

2.8

YBX3-315M-2

132

180

233.6

2980

95.4

0.9

7.1

2

22

92

2.8

YBX3-315L1-2

160

215

280

2980

95.4

0.91

7.1

2

22

92

2.8

YBX3-315L2-2

200

270

350

2980

95.4

0.91

7.1

2

22

92

2.8

YBX3-355M-2

250

340

549

2980

95.8

0.91

7.1

2

22

100

2.8

YBX3-355L-2

315

420

435.7

2980

95.8

0.91

7.1

2

22

100

1.6

Synchronous Speed 1500r/min

YBX3-63M1-4

0.12

0.16

0.44

1320

58

0.72

4.5

2.3

22

52

1.8

YBX3-63M2-4

0.18

0.24

0.61

1320

63

0.73

4.5

2.3

22

52

1.8

YBX3-71M1-4

0.25

0.33

0.78

1350

66

0.74

5.3

2.3

22

55

1.8

YBX3-71M2-4

0.37

0.5

1.08

1350

69

0.75

5.3

2.3

2*2

55

1.8

YBX3-80M1-4

0.55

0.75

1.4

1390

70.7

0.75

6.3

2.3

2.3

56

1.6

YBX3-80M2-4

0.75

1

1.8

1390

82.3

0.75

6.5

2.3

2.3

56

1.6

VBX3-90S-4

1.1

1.5

2.7

1400

83.8

0.75

6.6

2.3

2.3

59

1.6

YBX3-90L-4

1.5

2

3.6

1400

85

0.75

6.9

2.3

2.3

59

1.6

YBX3-100L1-4

2.2

3

4.8

1420

86.4

0.81

7.5

2.3

2.3

64

1.6

YBX3-100L2-4

3

4

6.4

1420

87.4

0.82

7.6

2.3

2.3

64

1.6

YBX3-112M-4

4

5.5

8.4

1440

88.3

0.82

7.7

2.3

2.3

65

1.6

YBX3-132S-4

5.5

7.5

11.4

1440

89.2

0.82

7.5

2

2.3

71

1.6

YBX3-132M-4

7.5

10

15.2

1440

91.0

0.83

7.4

2

2.3

71

1.6

YBX3-160M-4

11

15

21.6

1460

91

0.85

7.5

2.2

2.3

73

22

YBX3-160L-4

15

20

28.9

1460

91.8

0.86

7.5

2.2

2.3

73

2.2

YBX3-180M-4

18.5

25

35.4

1470

92.2

0.86

7.7

2.2

2.3

76

22

YBX3-180L-4

22

30

42

1470

92.6

0.86

7.8

2.2

2.3

76

22

YBX3-200L-4

30

40

56.9

1470

93.2

0.86

7.2

2.2

2.3

76

22

YBX3-225S-4

37

50

69.8

1480

93.6

0.86

7.3

2.2

2.3

78

22

YBX3-225M-4

45

60

84.7

1480

93.9

0.86

7.4

2.2

2.3

78

22

YBX3-250M-4

55

75

103.1

1480

94.2

0.86

7.4

2.2

2.3

79

22

YBX3-280S-4

75

100

136.7

1480

94.7

0.88

6.7

2.2

2.3

80

22

YBX3-280M-4

90

125

163.6

1480

95

0.88

6.9

2.2

2.3

80

22

YBX3-315S-4

110

150

199.1

1485

95.4

0.88

6.9

2.2

22

88

2.8

YBX3-315M-4

132

180

238.9

1485

95.4

0.88

6.9

2.2

22

88

2.8

YBX3-315L1-4

160

215

286.3

1485

95.4

0.89

6.9

2.2

22

88

2.8

YBX3-315L2-4

200

270

357.9

1485

95.4

0.89

6.9

2.2

22

88

2.8

YBX3-355M-4

250

340

440.5

1490

95.8

0.9

6.9

2.2

22

95

2.8

YBX3-355L-4

315

420

555.1

1490

95.8

0.9

6.9

2.2

22

95

2.8



Type No.

Rated output

Current IN(A)

Rated speed (r/min)

EFF %

Power factor cosΦ

Locked torque

Rated torque

TST/TTL

Locked current

Rated torque

IST/TTL

Max torque

Rated torque

TM/TFL

Noise level LW dB(A)

Peso (Kg)
(kW) HP

Synchronous Speed 1000r/min

YBX3-71M1-6

0.18

0.24

0.71

865

62

0.66

4

2

2.1

52

1.8

YBX3-71M2-6

0.25

0.33

0.92

865

63

0.68

4

2

2.1

52

1.8

YBX3-80M1-6

0.37

0.5

1.27

865

63

0.7

4

2

2

54

1.7

YBX3-80M2-6

0.55

0.75

1.54

870

75.4

0.72

4

2.1

2

55

1.7

YBX3-90S-6

0.75

1

2.3

910

77.7

0.72

5.8

2.1

2.1

57

1.6

YBX3-90L-6

1.1

1.5

2.9

910

79.9

0.73

5.9

2.1

2.1

57

1.6

YBX3-100L-6

1.5

2

3.8

940

81.5

0.74

6

2.1

2.1

61

1.6

YBX3-112M-6

2.2

3

5.4

940

83.4

0.74

6

2.1

2.1

65

1.6

YBX3-132S-6

3

4

7.9

960

84.9

0.74

6.2

2.1

2.1

69

1.6

YBX3-132M1-6

4

5.5

9.5

960

86.1

0.74

6.8

2.1

2.1

69

1.6

YBX3-132M2-6

5.5

7.5

12.7

960

87.4

0.75

7.1

2.1

2.1

69

1.6

YBX3-160M-6

7.5

10

16.4

970

89

0.78

6.7

2.1

2.1

70

2.2

YBX3-160L-6

11

15

23.5

970

90

0.79

6.9

2.1

2.1

70

2.2

YBX3-180L-6

15

20

30.9

970

91

0.81

7.2

2.1

2.1

73

2.2

YBX3-200L1-6

18.5

25

37.9

970

91.5

0.81

7.2

2.1

2.1

73

2.2

YBX3-200L2-6

22

30

44.3

970

92

0.82

7.3

2.1

2.1

73

2.2

YBX3-225M-6

30

40

60.8

980

92.5

0.81

7.1

2.1

2.1

74

2.2

YBX3-250M-6

37

50

72

980

93

0.84

7.1

2.1

2.1

76

2.2

YBX3-280S-6

45

60

85

980

93.5

0.86

7.2

2

2

78

2.2

YBX3-280M-6

55

75

103.6

935

93.8

0.86

7.2

2

2

78

2.2

YBX3-315S-6

75

100

142.3

985

94.2

0.85

6.7

2

2

83

2.8

YBX3-315M-6

90

125

172.3

985

94.5

0.86

6.7

2

2

83

2.8

YBX3-315L1-6

110

150

207

985

95

0.86

6.7

2

2

83

2.8

YBX3-315L2-6

132

180

245.5

985

95

0.87

6.7

2

2

83

2.8

YBX3-355M1-6

160

215

296.7

990

93

0.88

6.7

2

2

85

2.8

YBX3-355M3-6

200

270

370.9

990

93

0.88

6.7

2

2

85

2.8

YBX3-355L2-6

250

340

463.6

990

93

0.88

6.7

2

2

85

2.8

Synchronous Speed 750r/min

YBX3-80M1-8

0.18

0.24

0.86

710

52

0.61

1.8

3.3

1.9

52

1.8

YBX3-80M2-8

0.25

0.33

1.13

710

55

0.61

1.8

3.3

1.9

52

1.8

YBX3-90S-8

0.37

0.5

1.44

710

63

0.62

1.8

4

2

56

1.8

YBX3-90L-8

0.55

0.75

2.07

710

64

0.63

1.8

4

2

56

1.8

YBX3-100L1-8

0.75

1

2.36

710

71

0.68

1.8

4

2

59

1.8

YBX3-100L2-8

1.1

1.5

3.32

710

73

0.69

1.8

4

2

59

1.8

YBX3-112M-8

1.5

2

4.4

710

75

0.69

1.8

5.5

2

59

1.8

YBX3-132S-8

2.2

3

5.6

710

79

0.69

1.8

6

2

61

1.8

YBX3-132M-8

3

4

7.6

710

81

0.73

1.8

6

2.2

64

1.8

YBX3-160M1-8

4

5.5

10.3

720

81

0.75

1.9

6

2.2

68

2.8

YBX3-160M2-8

5.5

7.5

13.4

720

83

0.76

1.9

6

2.2

68

2.8

YBX3-160L-8

7.5

10

17.6

720

85

0.76

1.9

6.5

2.2

68

2.8

YBX3-180L-8

11

15

25.3

730

87

0.76

1.9

6.5

2.2

70

2.8

YBX3-200L-8

15

20

33.7

730

89

0.78

2

6.5

2.2

70

2.8

YBX3-225S-8

18.5

25

40

730

90

0.78

2



2.2

73

2.8

YBX3-225M-8

22

30

47.4

730

90.5

0.79

2

6.5

2.2

73

2.8

YBX3-250M-8

30

40

63.4

730

91

0.79

1.9

6.5

2

73

3.5

YBX3-280S-8

37

50

77.8

740

91.5

0.79

1.8

6.5

2

75

3.5

YBX3-280M-8

45

60

94.1

740

92

0.79

1.8

6.5

2.2

76

3.5

YBX3-315S-8

55

75

111.2

740

92.8

0.81

1.9



2.2

82

3.5

YBX3-315M-8

75

100

151.3

740

93

0.81

1.9

6.5

2.2

82

3.5

YBX3-315L1-8

90

125

177.8

740

93.8

0.82

1.9

6.5

2.2

82

3.5

YBX3-315L2-8

110

150

216.8

740

94

0.82

1.9

6.5

2.2

82

3.5

YBX3-355S-8

132

180

259.6

740

94.2

0.82

2

6.5

2.2

90

3.5

YBX3-355M-8

160

215

313.4

740

94.6

0.82

2

6.5

2.2

90

3.5

YBX3-355L1-8

185

250

362.3

740

94.6

0.82

2

6.5

2.2

90

3.5

YBX3-355L2-8

200

270

386.2

740

94.8

0.82

2

6.5

2.2

90

3.5

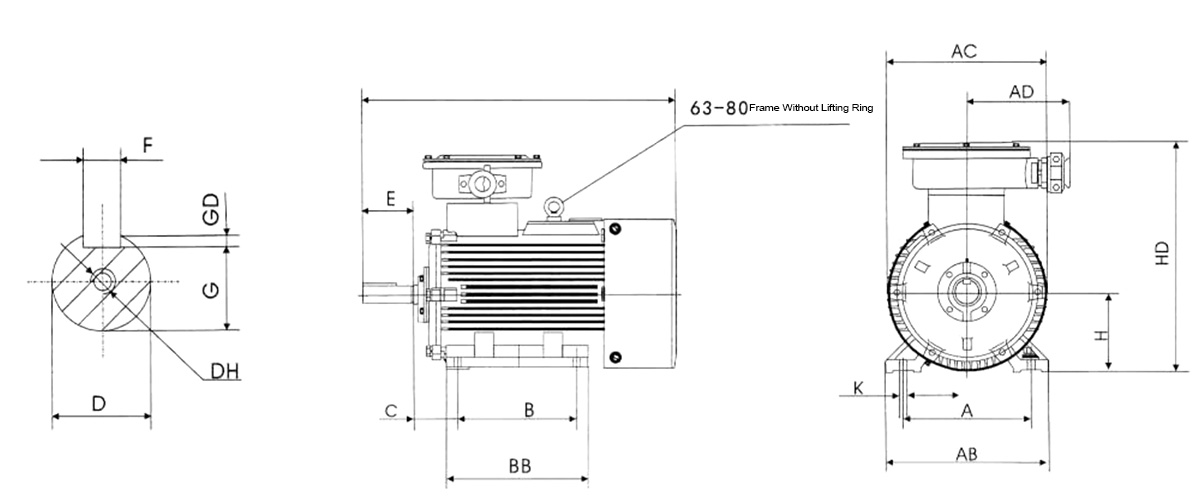

YBX3(63-355) IM B3 Outline and mounting dimensions

Frame size

Poles

Mounting Dimensions(mm)

Overall Dimensions(mm)

A

B

C

D

E

F

G

GD

H

K

AB

AC

AD

BB

HD

L

DH

63M

2.4

100

80

40

11

23

4

8.5

2.5

63

7

130

150

165

110

230

241

M4X10

71M

2.4.6

112

90

45

14

30

5

11

3

71

7

140

155

165

140

250

272

M5X12

80M

2.4.6.8

125

100

50

19

40

6

15.5

3.5

80

10

165

165

180

130

320

320

M6X16

90S

2.4.6.8

140

100

56

24

50

8

20

4

90

12

180

180

180

135

350

370

M8X19

90L

2.4.6.8

140

125

56

24

50

8

20

4

90

12

180

180

180

160

350

395

M8X19

100L

2.4.6.8

160

140

63

28

60

8

24

4

100

12

200

205

180

180

400

448

M8X22

112M

2.4.6.8

190

140

70

28

60

8

24

4

112

12

245

230

200

180

420

500

M8X22

132S

2.4.6.8

216

140

89

38

80

10

33

5

132

15

280

270

200

190

450

550

M12X28

132M

2.4.6.8

216

178

89

38

80

140

33

5

132

15

280

270

200

230

450

600

M12X28

160M

2.4.6.8

254

210

108

42

110

12

37

5

160

15

330

325

200

260

520

720

M16X36

160L

2.4.6.8

254

254

108

42

110

12

37

5

160

15

330

325

220

310

520

750

M16X36

180M

2.4.6.8

279

241

121

48

110

14

37

5.5

180

19

355

360

200

241

550

771

M16X36

180L

2.4.6.8

279

279

121

48

110

14

42.5

5.5

180

19

355

360

200

279

550

791

M16X36

200L

2.4.6.8

318

305

133

55

110

16

42.5

6

200

19

390

400

250

370

645

840

M20X42

225S

4.8

356

286

149

60

140

18

49

7

225

19

435

450

250

355

690

888

M20X42

225M

2

356

311

149

55

110

16

53

6

225

19

435

450

250

380

690

918

M20X42

4.6.8

356

311

149

60

140

18

49

7

225

19

435

450

250

380

690

918

M20X42

250M

2

406

349

168

60

140

18

53

7

250

24

490

500

300

420

730

965

M20X42

4.6.8

406

349

168

65

140

18

53

7

250

24

490

500

300

420

730

965

M20X42

280S

2

457

368

190

65

140

18

58

7

280

24

545

565

300

440

810

1007

M20X42

4.6.8

457

368

190

75

140

20

58

7.5

280

24

545

565

300

440

810

1007

M20X42

280M

2

457

419

190

65

140

18

67.5

7

280

24

545

565

300

480

810

1072

M20X42

4.6.8

508

419

190

75

140

20

58

7.5

280

24

545

565

300

490

810

1072

M20X42

315S

2

508

406

216

65

140

18

67.5

7

315

28

640

630

400

570

1020

1185

M20X42

4.6.8.10

508

406

216

80

170

22

58

9

315

28

640

630

400

570

1020

1185

M20X42

315M

2

508

457

216

65

140

18

71

7

315

28

640

630

400

680

1020

1305

M20X42

4.6.8.10

508

457

216

80

170

22

58

9

315

28

 640 630

400

 680

1020

1305

M20X42

315L

2

508

508

216

65

140

18

71

7

315

28

640

630

400

680

1020

1305

M20X42

4.6.8.10

508

508

216

80

170

22

58

9

315

28

640

630

400

680

1020

1305

M20X42

355S

2

500

500

254

75

140

20

67.5

7.5

355

28

740

750

500

640

1080

1415

M20X42

4.6.8.10

500

500

254

95

170

25

86

9

355

28

740

750

500

640

1080

1415

M24X50

355M

2

560

560

254

75

140

20

67.5

7.5

355

28

740

750

500

700

1080

1495

M20X42

4.6.8.10

560

560

254

95

170

25

86

9

355

28

740

750

500

700

1080

1495

M24X50

355L

2

630

630

254

75

140

20

67.5

7.5

355

28

740

750

500

770

1080

1645

M20X42

4.6.8.10

630

630

254

95

170

25

86

9

355

28

740

750

500

770

1080

1645

M24X50

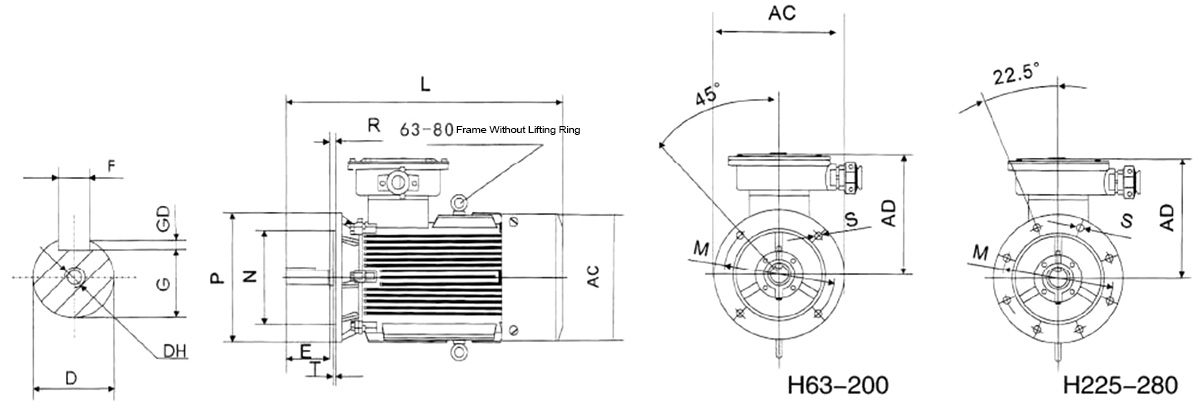

YBX3(63-280) IM B5 Outline and mounting dimensions

Frame size

Poles

Mounting Dimensions(mm)

Number of

flange holes

Overall Dimensions(mm)

D

E

F

G

GD

M

N

P

R

S

T

AC

AD

L

DH

63M

2.4

11

23

4

8.5

2.5

115

95

140

0

10

3

4

130

170

241

M4X10

71M

2.4.6

14

30

5

11

3

130

110

160

0

10

3

4

145

170

272

M5X12

80M

2.4.6.8

19

40

6

15.5

3.5

165

130

200

0

12

3.5

4

165

180

320

M6X16

90S

2.4.6.8

24

50

8

20

4

165

130

200

0

12

3.5

4

180

180

370

M8X19

90L

2A6.8

24

50

8

20

4

165

130

200

0

12

3.5

4

180

180

395

M8X19

100L

2AM

28

60

8

24

4

215

180

250

0

15

4

4

205

180

448

M8X22

112M

2.4.6.8

28

60

8

24

4

215

180

250

0

15

4

4

230

200

500

M8X22

132S

2.4.6.8

38

80

10

33

5

265

230

300

0

15

4

4

270

200

550

M12X28

132M

2.4.6.8

38

80

10

33

5

265

230

300

0

15

4

4

270

200

600

M12X28

160M

2A6.8

42

110

12

37

5

300

250

350

0

19

5

4

325

220

720

M16X36

160L

2.4.6.8

42

110

12

37

5

300

250

350

0

19

5

4

325

220

750

M16X36

180M

2.4.6.8

48

110

14

42.5

5.5

300

250

350

0

19

5

4

360

220

771

M16X36

180L

2.4.6.8

48

110

14

42.5

5.5

300

250

350

0

19

5

4

360

220

791

M16X36

200L

2.4.6.8

55

110

16

49

6

350

300

400

0

19

5

4

400

250

840

M20X42

225S

4.8

60

140

18

53

7

400

350

450

0

19

5

8

450

250

888

M20X42

225M

2

55

110

16

49

6

400

350

450

0

19

5

8

450

250

918

M20X42

4.6.8

60

140

18

53

7

400

350

450

0

19

5

8

450

250

918

M20X42

250M

2

60

140

18

53

7

500

450

550

0

19

5

8

500

300

965

M20X42

4.6.8

65

140

18

58

7

500

450

550

0

19

5

8

500

300

965

M20X42

280S

2

65

140

18

58

7

500

450

550

0

19

5

8

565

300

1007

M20X42

4.6.8

75

140

20

67.5

7.5

500

450

550

0

19

5

8

565

300

1007

M20X42

280M

2

65

140

18

58

7

500

450

550

0

19

5

8

565

300

1072

M20X42

4.6.8

75

140

20

67.5

7.5

500

450

550

0

19

5

8

565

300

1072

M20X42

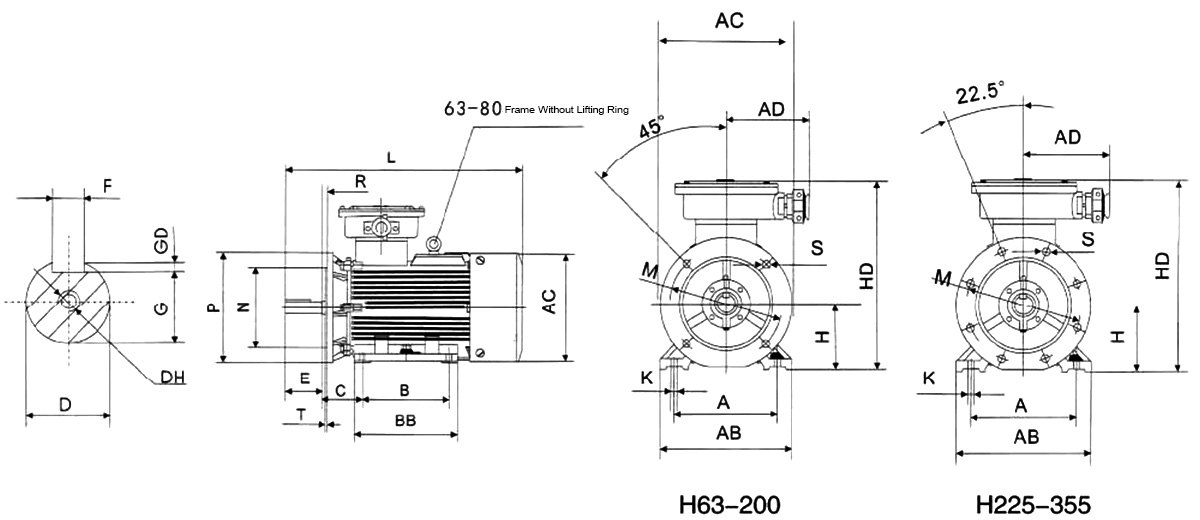

YBX3(80-355) IM B35 Outline and mounting dimensions

Frame size

Poles

Mounting Dimensions(mm)

Number of

flange holes

Overall Dimensions(mm)

A

B

C

D

E

F

G

GD

H

K

M

N

P

R

s

T

AB

AC

AD

BB

HD

L

DH

80M

2.4.6.8

125

100

50

19

40

6

15.5

3.5

80

10

165

130

200

0

12

3.5

4

165

165

180

130

320

320

M6X16

90S

2.4.6.8

140

100

56

24

50

8

20

4

90

12

165

130

200

0

12

3.5

4

180

180

180

135

350

370

M8X19

90L

2.4.6.8

140

125

56

24

50

8

20

4

90

12

165

130

200

0

12

3.5

4

180

180

180

160

350

395

M8X19

100L

2.4.6.8

160

140

63

28

60

8

24

4

100

12

215

180

250

0

15

4

4

200

205

180

180

400

448

M8X22

112M

2A6.8

190

140

70

28

60

8

24

4

112

12

215

180

250

0

15

4

4

245

230

200

180

420

500

M8X22

132S

2.4.6.8

216

140

89

38

80

10

33

5

132

15

265

230

300

0

15

4

4

280

270

200

190

450

550

M12X28

132M

2.4.6.8

216

178

89

38

80

140

33

5

132

15

265

230

300

0

15

4

4

280

270

200

230

450

600

M12X28

160M

2.4.6.8

254

210

108

42

110

12

37

5

160

15

300

250

350

0

19

5

4

330

325

200

260

520

720

M16X36

160L

2.4.6.8

254

254

108

42

110

12

37

5

160

15

300

250

350

0

19

5

4

330

325

220

310

520

750

M16X36

180M

2A6.8

279

241

121

48

110

14

37

5.5

180

19

300

250

350

0

19

5

4

355

360

200

241

550

771

M16X36

180L

2A6.8

279

279

121

48

110

14

42.5

5.5

180

19

300

250

350

0

19

5

4

355

360

200

279

550

791

M16X36

200L

2.4.6.8

318

305

133

55

110

16

42.5

6

200

19

350

300

400

0

19

5

4

390

400

250

370

645

840

M20X42

225S

4.8

356

286

149

60

140

18

49

7

225

19

400

350

450

0

19

5

8

435

450

250

355

690

888

M20X42

225M

2

356

311

149

55

110

16

53

6

225

19

400

350

450

0

19

5

8

435

450

250

380

690

918

M20X42

4.6.8

356

311

149

60

140

18

49

7

225

19

400

350

450

0

19

5

8

435

450

250

380

690

918

M20X42

250M

2

406

349

168

60

140

18

53

7

250

24

500

450

550

0

19

5

8

490

500

300

420

730

965

M20X42

4.6.8

406

349

168

65

140

18

53

7

250

24

500

450

550

0

19

5

8

490

500

300

420

730

965

M20X42

280S

2

457

368

190

65

140

18

58

7

280

24

500

450

550

0

19

5

8

545

565

300

440

810

1007

M20X42

4.6.8

457

368

190

75

140

20

58

7.5

280

24

500

450

500

0

19

5

8

545

565

300

440

810

1007

M20X42

280M

2

457

419

190

65

140

18

67.5

7

280

24

500

450

500

0

19

5

8

545

565

300

480

810

1072

M20X42

4.6.8

508

419

190

75

140

20

58

7.5

280

24

500

450

500

0

19

5

8

545

565

300

490

810

1072

M20X42

315S

2

508

406

216

65

140

18

67.5

7

315

28

600

550

660

0

24

6

8

640

630

400

570

1020

1185

M20X42

4.6.8.10

508

406

216

80

170

22

58

9

315

28

600

550

660

0

24

6

8

640

630

400

570

1020

1185

M20X42

315M

2

508

457

216

65

140

18

71

7

315

28

600

550

660

0

24

6

8

640

630

400

680

1020

1305

M20X42

4.6.8.10

508

457

216

80

170

22

58

9

315

28

600

550

660

0

24

6

8

640

630

400

680

1020

1305

M20X42

315L

2

508

508

216

65

140

18

71

7

315

28

600

550

660

0

24

6

8

640

630

400

680

1020

1305

M20X42

4.6.8.10

508

508

216

80

170

22

58

9

315

28

600

550

660

0

24

6

8

640

630

400

680

1020

1305

M20X42

355S

2

500

500

254

75

140

20

67.5

7.5

355

28

740

680

800

0

24

6

8

740

750

500

640

1080

1415

M20X42

4.6.8.10

500

500

254

95

170

25

86

9

355

28

740

680

800

0

24

6

8

740

750

500

640

1080

1415

M24X50

355M

2

560

560

254

75

140

20

67.5

7.5

355

28

740

680

800

0

24

6

8

740

750

500

700

1080

1495

M20X42

4.6.8.10

560

560

254

95

170

25

86

9

355

28

740

680

800

0

24

6

8

740

750

500

700

1080

1495

M24X50

355L

2

630

630

254

75

140

20

67.5

7.5

355

28

740

680

800

0

24

6

8

740

750

500

770

1080

1645

M20X42

4.6.8.10

630

630

254

95

170

25

86

9

355

28

740

680

800

0

24

6

8

740

750

500

770

1080

1645

M24X50

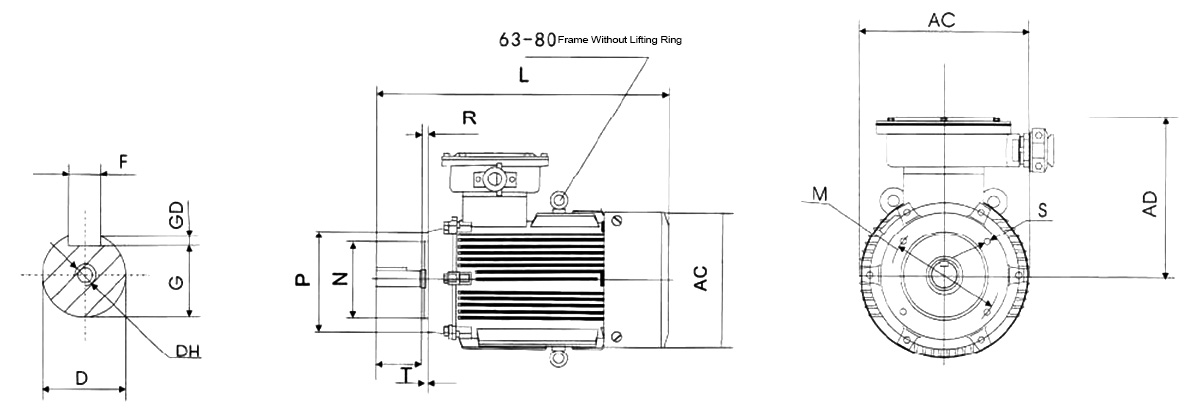

YBX3(63-112) IM B14A Outline and mounting dimensions





Frams size

Poles

Mounting Dimensions(mm)

Number of

flange holes

Overall Dimensions(mm)

D

E

F

G

GD

M

N

P

R

S

T

AC

AD

L

DH

63M

2.4

11

23

4

8.5

2.5

75

60

90

0

M5

2.5

4

150

170

241

M4X10

71M

2.4.6

14

30

5

11

3

85

70

105

0

M6

2.5

4

155

170

272

M5X12

80M

2.4.6.8

19

40

6

15.5

3.5

100

80

120

0

M6

3

4

165

240

320

M6X16

90S

2.4.6.8

24

50

8

20

4

115

95

140

0

M8

3

4

180

260

370

M8X19

90L

2.4.6.8

24

50

8

20

4

115

95

140

0

M8

3

4

180

260

395

M8X19

100L

2.4.6.8

28

60

8

24

4

130

110

160

0

M8

3.5

4

205

300

448

M8X22

112M

2.4.6.8

28

60

8

24

4

130

110

160

0

M8

3.5

4

230

310

500

M8X22

Zhejiang Qizhi Motor Co., Ltd.

ZHEJIANG QIZHI MOTOR CO., LTD. is a professional production of various kinds of small and medium-sized modern enterprise, the main products include ME2 series Grundfos high-efficiency aluminum motor, Motor asincrónico trifásico a prueba de explosión serie YBX3, IE1 series three-phase asynchronous motor, IE2 series three-phase asynchronous motor, IE3 series super efficient three-phase asynchronous motor, YD series pole-changing multi-speed three phase asynchronous electric motor, YDT series three-phase consequent-poles asynchronous motor, YCT series electromagnetic speedregulating motor, MS series three-phase asynchronous motor with aluminium housing, YVF2 series three-phase frequency controlled asynchronous motor, YVF2 series of frequency conversion aluminum shell speed three-phase asynchronous motor, YEJ series electromagnetic braking three-phase asynchronous motor, YC/YCL series heavy-duty single-phase capacitors start induction motor, MLYL seriessingle-phase dual-capacitor induction motor, YYB Series pump for three-phase asynchronous motor, IRG/SW Single stage single pipette centrifugal pump, CDLICDLF stainless steel vertical multistage pump, etc. OEM Motor asincrónico trifásico a prueba de explosión serie YBX3 Factory

ZHEJIANG QIZHI MOTOR CO., LTD. depending on the talent for the enterprise development, with strong technology research and development team, has the industry's most advanced automated nc production equipment, advanced technology and equipment, usingadvanced design software for product design, perfect modern management system, strictly in accordance with "ISO-9001"national quality management system certification, production to make the success rate of new product development speed and improve, for the same industry leading level. As Custom Motor asincrónico trifásico a prueba de explosión serie YBX3 Suppliers, the company has advanced motor testing equipment, to guarantee product quality, won the domestic andforeign customers a wide range of trust and praise, the company through the Chinese CCC certification and CQC certification, ISO-
9001 international quality system certification, CE certification, SGS certification (ROHS), and obtained the national electrical products export quality license, with our continuously innovation in the face of the market; The products sell well all over the country and exported to southeast Asia, Germany, Italy, Poland, Britain, France, the Middle East, South America, Africa, Asia, etc. More than 80 countries and regions. In domestic widely used in air compressor, washing machine, water pump, fan, mechanical industry, reducer, such as the host.

We would like to more higher quality product, more lower preferential price, complete thoughtul pre-sale, sale, after-sale service, cooperate with friends from all walks of life, hand in hand advance together, altogether will create the glorious future.

  • 1996

    Founded in

  • 10000㎡

    company area

  • 200+

    Employees

  • 45+

    Exported countries

Zhejiang Qizhi Motor Co., Ltd.

Plant equipment

Related Products
