русскийMotor asíncrono trifásico con freno electromagnético DC serie YEJ Custom
Inicio / Productos / Motor Asíncrono Trifásico / Serie YEJ / Motor asíncrono trifásico con freno electromagnético DC serie YEJ
Descripción del producto

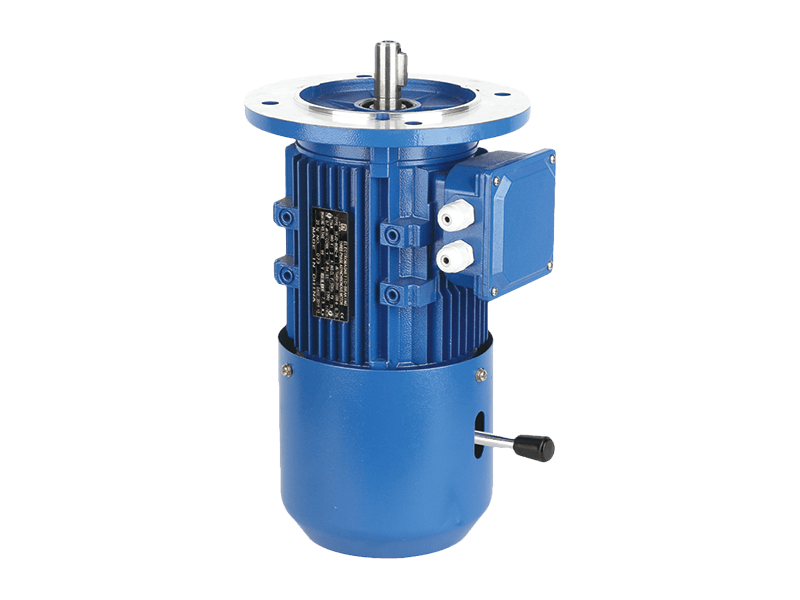

El motor serie YEJ está totalmente cerrado y ventilado externamente, con freno redondo DC. Se caracteriza por frenado rápido, estructura simple, alta fiabilidad y amplias aplicaciones. También puede liberarse manualmente. Ideal para equipos que requieren paradas rápidas y frenado preciso.
Las dimensiones de montaje son idénticas a las de la serie Y2.
Condiciones de operación
Temperatura ambiente: -15℃ a 40℃
Altitud: ≤1000 m
Tensión nominal: 380V
Frecuencia nominal: 50Hz o 60Hz
Grado de protección: IP44, IP54, IP55
Clase de aislamiento: B, F, H
Método de refrigeración: IC0141
Servicio: S1
Conexión: Estrella hasta 3kW, triángulo desde 4kW
Nota: Los motores pueden equiparse con PTC y sistema de reengrase a partir del bastidor 160
|

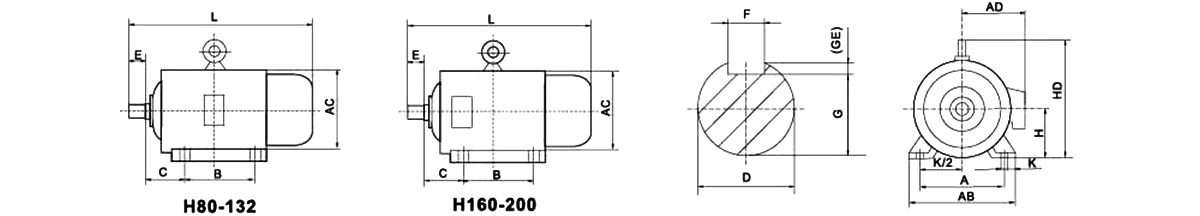

Frame No. |
Dimensiones de montaje(mm) |
Dimensiones generales(mm) |
||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
AB |
AC |
AD |
HD |
L |
|
|
80S |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
175 |
150 |
175 |
390 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
180 |
195 |
160 |
195 |
420 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
180 |
195 |
160 |
195 |
445 |
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
205 |
215 |
180 |
245 |
480 |
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
245 |
240 |
190 |
265 |
510 |
|
132S |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
280 |
275 |
210 |
315 |
585 |
|
132M |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
280 |
275 |
210 |
315 |
625 |
|
160M |
254 |
210 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
330 |
335 |
260 |
385 |
720 |
|
160L |
254 |
254 |
108 |
42 |
110 |
12 |
37 |
160 |
15 |
330 |
335 |
260 |
385 |
765 |
|
180M |
279 |
241 |
121 |
48 |
110 |
14 |
42.5 |
180 |
15 |
355 |
380 |
285 |
430 |
825 |
|
180L |
279 |
279 |
121 |
48 |
110 |
14 |
42.5 |
180 |
15 |
355 |
380 |
285 |
430 |
875 |
|
200L |
318 |
305 |
133 |
55 |
110 |
16 |
49 |
200 |
19 |
395 |
420 |
315 |
475 |
900 |
|
225S |
365 |
286 |
149 |
60 |
140 |
18 |
53 |
225 |
19 |
435 |
475 |
345 |
530 |
1000 |
|
225M(2 polos） |
356 |
311 |
149 |
55 |
110 |
16 |
49 |
225 |
19 |
435 |
475 |
345 |
530 |
1000 |
|
225M(4、6、8 polos） |
356 |
311 |
149 |
60 |
140 |
18 |
53 |
225 |
19 |
435 |
475 |
345 |
530 |
1030 |
Fecha técnica
|
Tipo |
Potencia nominal kW |
Carga completa |
Corriente bloqueada Par nominal lst/ln |
Torque bloqueado Par nominal Tstart/Tn |
Torque máximo Par nominal Tmax/Tn |
El par del freno estático no es menor que: N.m |
U.f V Voltaje emocionante |
GD2 KGF M2 Momento de inercia |
S tiempo de freno bajo ninguna carga no es más alto que |
|||
|
Velocidad (r/min) |
Actual (A) |
Eff (%) |
Factor de potencia (cosΦ) | |||||||||
|
YEJ80M1-2 |
0. 75 |
2825 |
1.9 |
75.5 |
0.84 |
6.5 |
2.2 |
2.3 |
7.5 |
99 |
0.00428 |
0.20 |
|
YEJ80M2-2 |
1. 1 |
2825 |
2.6 |
77.0 |
0.86 |
7.0 |
2.2 |
2.3 |
7.5 |
99 |
0.0496 |
0.20 |
|
YEJ90S-2 |
1. 5 |
2840 |
3.4 |
78.0 |
0.85 |
7.0 |
2.2 |
2.3 |
15 |
99 |
0.0074 |
0.20 |
|
YEJ90L-2 |
2. 2 |
2840 |
4.7 |
80.0 |
0.86 |
7.0 |
2.2 |
2.3 |
15 |
99 |
0.00933 |
0.20 |
|
YEJ100L-2 |
3. 0 |
2880 |
6.4 |
82.0 |
0.87 |
7.0 |
2.2 |
2.3 |
30 |
99 |
0.01064 |
0.20 |
|
YEJ112M-2 |
4. 0 |
2890 |
8.2 |
85.5 |
0.87 |
7.0 |
2.2 |
2.3 |
40 |
170 |
0.03199 |
0.25 |
|
YEJI32S1-2 |
5. 5 |
2900 |
11.1 |
85.5 |
0.88 |
7.0 |
2.0 |
2.3 |
75 |
170 |
0.06434 |
0.25 |
|
YEJI32S2-2 |
7. 5 |
2900 |
15.0 |
86.2 |
0.88 |
7.0 |
2.0 |
2.3 |
75 |
170 |
0.0724 |
0.25 |
|
YEJ160M1-2 |
11 |
2930 |
21.8 |
87.2 |
0.88 |
7.0 |
2.0 |
2.3 |
150 |
170 |
0.22853 |
0.35 |
|
YEJ160M2-2 |
15 |
2930 |
29.4 |
88.2 |
0.88 |
7.0 |
2.0 |
2.2 |
150 |
170 |
0.26623 |
0.35 |
|
YEJ160L-2 |
18.5 |
2930 |
35.5 |
89.0 |
0.89 |
7.0 |
2.0 |
2.2 |
200 |
170 |
0.316 |
0.35 |
|
YEJ180M-2 |
22 |
2940 |
42.2 |
89.0 |
0.89 |
7.0 |
2.0 |
2.2 |
300 |
170 |
0.37637 |
0.35 |
|
YEJ200L1-2 |
30 |
2950 |
56.9 |
90.0 |
0.89 |
7.0 |
2.0 |
2.2 |
300 |
170 |
0.739 |
0.45 |
|
YEJ200L2-2 |
37 |
2950 |
69.8 |
90.5 |
0.89 |
7.0 |
2.0 |
2.2 |
350 |
170 |
0.8181 |
0.45 |
|
YEJ225M-2 |
45 |
2990 |
83.9 |
91.5 |
0.89 |
7.0 |
2.0 |
2.2 |
450 |
170 |
1.269 |
0.45 |
|
YEJ80M1-4 |
0.55 |
1390 |
1.5 |
73.0 |
0.76 |
6.0 |
2.4 |
2.3 |
7.5 |
100 |
0.00866 |
0.20 |
|
YEJ80M2-4 |
0.75 |
1390 |
2.1 |
74.5 |
0.76 |
6.0 |
2.3 |
2.3 |
7.5 |
100 |
0.01073 |
0.20 |
|
YEJ90S-4 |
1.1 |
1400 |
2.7 |
78.0 |
0.78 |
6.5 |
2.3 |
2.3 |
15 |
100 |
0.01132 |
0.20 |
|
YEJ90L-4 |
1.5 |
1400 |
3.7 |
79,0 |
0.79 |
6.5 |
2.3 |
2.3 |
15 |
100 |
0.0143 |
0.20 |
|
YEJ100L1-4 |
2.2 |
1420 |
5.0 |
81.0 |
0.82 |
7.0 |
2.3 |
2.3 |
30 |
100 |
0.02733 |
0.20 |
|
YEJ100L2-4 |
3.0 |
1420 |
6.8 |
82.5 |
0.81 |
7.0 |
2.3 |
2.3 |
30 |
100 |
0.03506 |
0.20 |
|
YEJ112M-4 |
4.0 |
1440 |
8.8 |
84.5 |
0.82 |
7.0 |
2.2 |
2.3 |
40 |
170 |
0.04969 |
0.25 |
|
YEJ132S-4 |
5.5 |
1440 |
11.6 |
85.5 |
0.84 |
7.0 |
2.2 |
2.3 |
75 |
170 |
0.11584 |
0.25 |
|
YEJ132M-4 |
7.5 |
1440 |
15.4 |
87.0 |
0.85 |
7.0 |
2.2 |
2.3 |
75 |
170 |
0.15404 |
0.25 |
|
YEJ160M-4 |
11 |
1460 |
22.6 |
88.0 |
0.84 |
7.0 |
2.2 |
2,3 |
150 |
170 |
0.3986 |
0.35 |
|
YEJ160L-4 |
15 |
1460 |
30.3 |
88.5 |
0.85 |
7.0 |
2.2 |
2.2 |
150 |
170 |
0.368288 |
0.35 |
|
YEJ180M-4 |
18.5 |
1470 |
35.9 |
91.0 |
0.86 |
7.0 |
2.0 |
2.2 |
200 |
170 |
0.6667 |
0.35 |
|
YEJ80L-4 |
22 |
1470 |
42.5 |
91.5 |
0.86 |
7.0 |
2.0 |
2.2 |
200 |
170 |
0.7677 |
0.35 |
|
YEJ200L-4 |
30 |
1470 |
56.8 |
92.5 |
0.87 |
7.0 |
2.0 |
2.2 |
300 |
170 |
1.3963 |
0.45 |
|
YEJ225S-4 |
37 |
1480 |
69.8 |
91.8 |
0.87 |
7.0 |
1.9 |
2.2 |
450 |
170 |
2.158 |
0.45 |
|
YEJ225M-4 |
45 |
1480 |
84.2 |
92.3 |
0.88 |
7.0 |
1.9 |
2.2 |
450 |
170 |
2.463 |
0.45 |
|
YEJ90S-6 |
0.75 |
910 |
2.3 |
72.5 |
0.70 |
5.5 |
2.2 |
2.0 |
15 |
100 |
0.01514 |
0.20 |
|
YEJ90L-6 |
1.1 |
910 |
3.2 |
73.5 |
0.72 |
6.0 |
2.2 |
2.0 |
15 |
100 |
0.01815 |
0.20 |
|
YEJ100L-6 |
1.5 |
940 |
4.0 |
77.5 |
0.74 |
6.0 |
2.2 |
2.0 |
30 |
100 |
0.03573 |
0.20 |
|
YEJ112M-6 |
2.2 |
940 |
5.6 |
80.5 |
0.74 |
6.0 |
2.2 |
2.0 |
40 |
170 |
0.07639 |
0.25 |
|
YEJ132S-6 |
3.0 |
960 |
7.2 |
83.0 |
0.76 |
6.5 |
2.2 |
2.0 |
75 |
170 |
0.15437 |
0.25 |
|
YEJ132M1-6 |
4.0 |
960 |
9.4 |
84.0 |
0.77 |
6.5 |
2.2 |
2.0 |
75 |
170 |
0.1906 |
0.25 |
|
YEJ132M2-6 |
5.5 |
960 |
12.6 |
85.3 |
0.78 |
6.5 |
2.0 |
2.0 |
76 |
170 |
0.2384 |
0.25 |
|
YEJ160M-6 |
7.5 |
970 |
17.0 |
86.0 |
0.78 |
6.5 |
2.0 |
2.0 |
150 |
170 |
0.45813 |
0.35 |
|
YEJ160L-6 |
11 |
970 |
24.6 |
87.0 |
0.78 |
6.5 |
2.0 |
2.0 |
150 |
170 |
0.59078 |
0.35 |
|
YEJ180L-6 |
15 |
970 |
31.4 |
89.5 |
0.81 |
6.5 |
1.8 |
2.0 |
200 |
170 |
0.9919 |
0.35 |
|
YEJ200L1-6 |
18.5 |
970 |
37.7 |
89.5 |
0.83 |
6.5 |
18 |
2.0 |
300 |
170 |
0.6609 |
0.45 |
|
YEJ200L2-6 |
22 |
970 |
44.6 |
90.2 |
0.83 |
6.5 |
1.8 |
2.0 |
300 |
170 |
1.838 |
0.45 |
|
YEJ225M-6 |
30 |
980 |
59.5 |
90.2 |
0.85 |
6.5 |
1.7 |
2.0 |
450 |
170 |
2.639 |
0.45 |
|
YEJ132S-8 |
2.2 |
710 |
5.8 |
80.5 |
0.71 |
5.5 |
2.0 |
2.0 |
75 |
170 |
0.15534 |
0.25 |
|
YEJ132M-8 |
3.0 |
710 |
7.7 |
82.0 |
0.72 |
5.5 |
2.0 |
2.0 |
75 |
170 |
0.16184 |
0.25 |
|
YEJ160M1-8 |
4.0 |
720 |
9.9 |
84.0 |
0.73 |
6.0 |
2.0 |
2.0 |
150 |
170 |
0.37563 |
0.35 |
|
YEJ160M2-8 |
5.5 |
720 |
13.3 |
85.0 |
0.74 |
6.0 |
2.0 |
2.0 |
150 |
170 |
0.4714 |
0.35 |
|
YEJ160L-8 |
7,5 |
720 |
17.3 |
86.0 |
0.75 |
5.5 |
2.0 |
2.0 |
150 |
170 |
0.60538 |
0.35 |
|
YEJ180L-8 |
11 |
730 |
17.7 |
87.5 |
0.77 |
6.0 |
17 |
2.0 |
200 |
170 |
0.9636 |
0.35 |
|
YEJ200L-8 |
15 |
730 |
34.1 |
88.0 |
0.76 |
6.0 |
18 |
2.0 |
300 |
170 |
1.194 |
0.45 |
|
YEJ225S-8 |
18.5 |
730 |
41.3 |
89.5 |
0.76 |
6.0 |
|
2.0 |
450 |
170 |
2.299 |
0.45 |
|
YEJ225M-8 |
22 |
730 |
47.6 |
90.0 |
0.78 |
6.0 |
18 |
2.0 |
450 |
170 |
2.436 |
0.45 |
