Descripción del producto

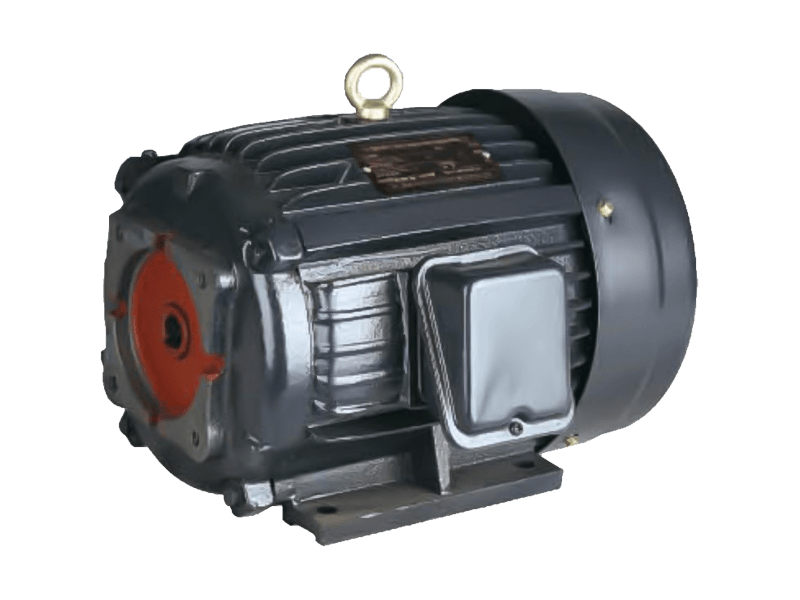

El motor serie YYB ha sido diseñado especialmente para bombas axiales de émbolo. El eje del motor puede acoplarse directamente con la bomba, sin necesidad de acoplamientos, lo cual reduce el espacio de instalación. Este motor se caracteriza por su estructura compacta, tamaño reducido, peso ligero, baja vibración, bajo ruido, alta eficiencia y larga vida útil. Es ampliamente utilizado en maquinaria herramienta, forja, grúas, embarcaciones, máquinas de moldeo por inyección, metalurgia, maquinaria de ingeniería, minería e hidráulica. También es compatible con bombas de pistón tipo CV-Y, bombas de engranajes, bombas de paletas y otros tipos de bombas de émbolo.
Datos técnicos:
Altura del eje: 90～132 mm
Rango de potencia: 0.37～7.5 kW
Tensión nominal: 380V (otras tensiones bajo pedido)
Frecuencia nominal: 50Hz (otras frecuencias bajo pedido)
Grado de protección: IP55
Clase de aislamiento: F
Tipo de servicio: S1
Formas de instalación: IM B3 / IM B5
|
Tipo No. |
Salida nominal (kW) |
Velocidad nominal (r/min) |
Actual en (A) |
EFF % |
Factor de potencia cosΦ |
Torque bloqueado Par nominal TST/TFL |
Corriente bloqueada Par nominal IST/TFL |
Max lorque Par nominal TM/TFL |
|
Velocidad sincrónica 3000r/min |
||||||||
|
YYB-90S-2 |
1.5 |
2840 |
3.34 |
81.3 |
0.84 |
2.3 |
7.3 |
2.3 |
|
YYB-90L-2 |
22 |
2840 |
4.73 |
83.2 |
0.85 |
2.3 |
7.6 |
2.3 |
|
YYB-100L-2 |
3.0 |
2870 |
6.19 |
84.6 |
0.87 |
22 |
7.8 |
2.3 |
|
YYB-112M-2 |
4.0 |
2890 |
8.05 |
85.8 |
0.88 |
22 |
8.1 |
2.3 |
|
YYB-132S1-2 |
5.5 |
2900 |
10.5 |
87 |
0.88 |
22 |
8.2 |
2.3 |
|
YYB-132S2-2 |
7.5 |
2900 |
14.5 |
88.1 |
0.89 |
22 |
7.8 |
2.3 |
|
Velocidad sincrónica 1500r/min |
||||||||
|
YYB-90S-4 |
1.1 |
1400 |
2.67 |
81.4 |
0.77 |
2.3 |
6.6 |
2.3 |
|
YYB-90L-4 |
1.5 |
1400 |
3.44 |
82.8 |
0.78 |
2.3 |
6.7 |
2.3 |
|
YYB-100L1-4 |
22 |
1430 |
4.96 |
84.3 |
0.80 |
2.3 |
7.3 |
2.3 |
|
YYB-100L2-4 |
3.0 |
1430 |
6.58 |
85.5 |
0.81 |
2.3 |
7.5 |
2.3 |
|
YYB-112M-4 |
4.0 |
1440 |
8.67 |
86.6 |
0.81 |
2.3 |
7.5 |
2.3 |
|
YYB-132S1-4 |
5.5 |
1440 |
11.6 |
87.7 |
0.82 |
2.0 |
7.5 |
2.3 |
|
YYB-132S2-4 |
7.5 |
1440 |
15.5 |
88.7 |
0.83 |
2.0 |
7.3 |
2.3 |
|
Velocidad sincrónica 1000r/min |
||||||||
|
YYB-90S-6 |
0.75 |
910 |
2.11 |
75.9 |
0.71 |
2.0 |
5.8 |
2.1 |
|
YYB-90L-6 |
1.1 |
910 |
2.97 |
78.1 |
0.72 |
2.0 |
5.9 |
2.1 |
|
YYB-100L-6 |
1.5 |
940 |
3.97 |
79.8 |
0.72 |
2.0 |
5.9 |
2.1 |
|
YYB-112M-6 |
2.2 |
940 |
5.68 |
81.8 |
0.72 |
2.0 |
6.2 |
2.1 |
|
YYB-132S-6 |
3.0 |
960 |
7.60 |
83.3 |
0.72 |
2.0 |
6.4 |
2.1 |
|
YYB-132M1-6 |
4.0 |
960 |
9.71 |
84.6 |
0.74 |
2.0 |
6.6 |
2.1 |
|
YYB-132M2-6 |
5.5 |
960 |
12.9 |
86 |
0.75 |
2.0 |
6.8 |
2.1 |
|
Velocidad sincrónica 750r/min |
||||||||
|
YYB-90S-8 |
0.37 |
660 |
1.49 |
62 |
0.61 |
1.8 |
4.0 |
1.9 |
|
VYB-90L-8 |
0.55 |
660 |
2.17 |
63 |
0.61 |
1.8 |
4.0 |
2.0 |
|
YYB-100L1-8 |
0.75 |
690 |
2.40 |
71 |
0.67 |
1.8 |
4.0 |
2.0 |
|
YYB-100L2-8 |
1.1 |
690 |
3.32 |
73 |
0.69 |
1.8 |
5.0 |
2.0 |
|
YYB-112M-8 |
1.5 |
700 |
4.40 |
75 |
0.69 |
1.8 |
5.0 |
2.0 |
|
YYB-132S-8 |
22 |
710 |
6.04 |
78 |
0.71 |
1.8 |
6.0 |
2.0 |
|
YYB-132M-8 |
3.0 |
710 |
7.90 |
79 |
0.73 |
1.8 |
6.0 |
2.0 |
