Descripción del producto
La serie YC está completamente cerrada y refrigerada por ventilador (TEFC), diseñada para trabajos pesados. Las dimensiones de montaje cumplen con el estándar IEC. Hasta 3 HP, usan un solo condensador; de 4 HP en adelante, incluyen condensador de arranque y de marcha. Se caracterizan por diseño actualizado, materiales de alta calidad, apariencia estética, alto par de arranque, funcionamiento suave, baja elevación de temperatura, bajo ruido y buen rendimiento de sobrecarga. Son ideales para taladros pequeños y bombas de agua, especialmente donde solo hay corriente monofásica.
Condiciones de operación
Temperatura ambiente: -15℃ ≤ T ≤ 40℃
Altitud: no superior a 1000 m
Voltaje: 220V
Frecuencia: 50Hz, 60Hz
Protección: IP44, IP54
Aislamiento: clase B, F
Enfriamiento: IC0141
Régimen: S1 (continuo)
|

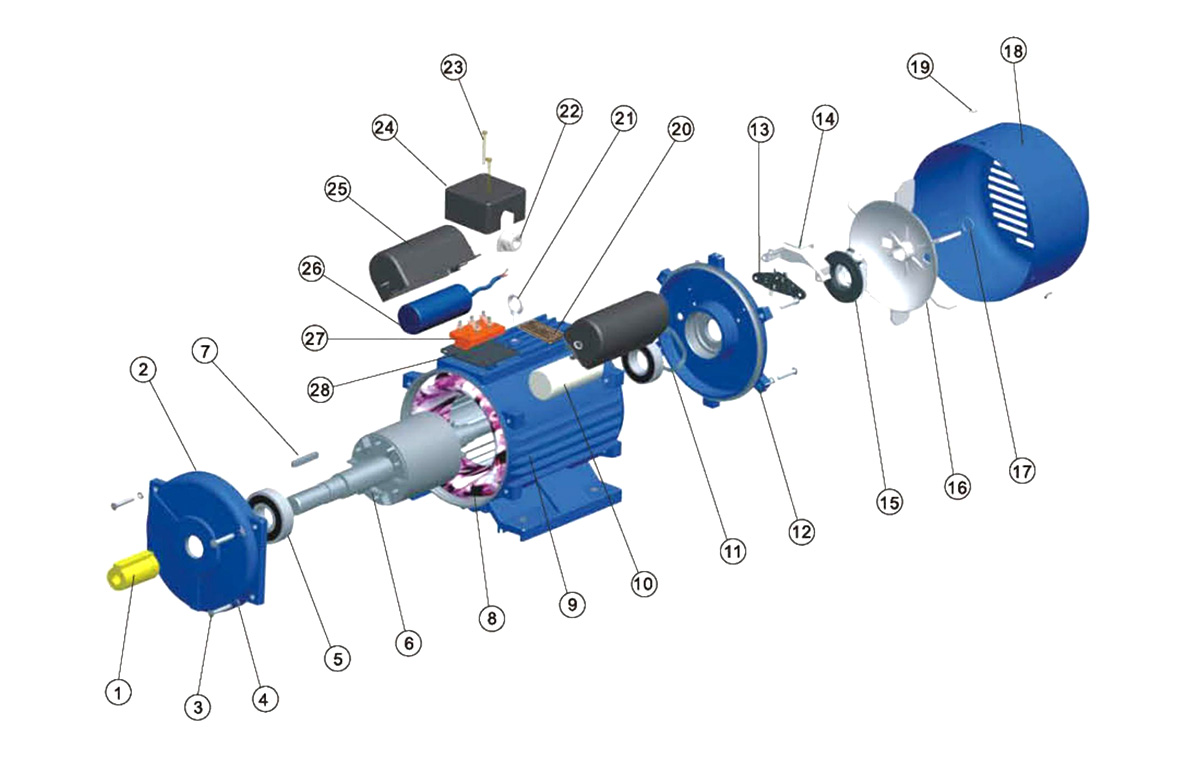

1. Tapa del eje 2. Disimpeor delantero 3. Tornillo 4. Lavadora de primavera 5. Cojinete 6. Rotor 7. Llave 8. Estator 9. Marco 10. Capactior CD60 11. Forma de onda |
12. Escudo trasero 13. Placa trasera 14. Blindaje 15. Interruptor centrífugo 16. Admirador 17. Abrazadera 18. Capucha de abanico 19. Tornillo de capucha de ventilador 20. Letrero 21. Cáncamo 22. Chaqueta |
23. Tornillo 24. Caja terminal 25. Tapa de caja de condensador 26. Condensador CBB60 27. Terminal Board 28. Lavadora de cuero |
Dimensiones generales y de instalación
|
Frame No. |
Dimensiones de montaje(mm) |
Dimensiones generales(mm) |
|||||||||||||||||||
|
A |
B |
C |
D |
E |
F |
G |
H |
K |
M |
N |
P |
R |
S |
T |
AB |
AC |
AE |
AD |
HD |
L |
|
|
80 |
125 |
100 |
50 |
19 |
40 |
6 |
15.5 |
80 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
160 |
165 |
110 |
120 |
200 |
310 |
|
90S |
140 |
100 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
120 |
140 |
240 |
370 |
|
90L |
140 |
125 |
56 |
24 |
50 |
8 |
20 |
90 |
10 |
165 |
130 |
200 |
0 |
12 |
3.5 |
180 |
185 |
120 |
140 |
240 |
400 |
|
100L |
160 |
140 |
63 |
28 |
60 |
8 |
24 |
100 |
12 |
215 |
180 |
250 |
0 |
15 |
4.0 |
205 |
220 |
130 |
145 |
260 |
430 |
|
112M |
190 |
140 |
70 |
28 |
60 |
8 |
24 |
112 |
12 |
215 |
180 |
250 |
0 |
15 |
4.0 |
245 |
250 |
140 |
160 |
300 |
455 |
|
132S |
216 |
140 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
0 |
15 |
4.0 |
280 |
262 |
150 |
210 |
350 |
525 |
|
132M |
216 |
178 |
89 |
38 |
80 |
10 |
33 |
132 |
12 |
265 |
230 |
300 |
0 |
15 |
4.0 |
280 |
262 |
150 |
210 |
350 |
553 |
Fecha técnica
|
Tipo |
Producción |
Voltaje (V) |
Frecuencia (HZ) |
Actual (A) |
Velocidad (r/min) |
Eff (%) |
Factor de potencia |
Torque bloqueado Par nominal Tstart/Tn |
Corriente bloqueada Par nominal lst/ln |
Torque máximo Par nominal Tmax/Tn |
|
| HP | KW | ||||||||||
|
YC80a-2 |
0.5 |
0.37 |
220 |
50 |
3.4 |
2800 |
66 |
0.74 |
3 |
6.5 |
2 |
|
YC80b-2 |
0.75 |
0.55 |
220 |
50 |
5.0 |
2800 |
67 |
0.74 |
3 |
6.5 |
2 |
|
YC80C-2 |
1 |
0.75 |
220 |
50 |
6.7 |
2800 |
68 |
0.75 |
3 |
6.5 |
2 |
|
YC90S-2 |
1.5 |
1.1 |
220 |
50 |
8.8 |
2800 |
71 |
0.8 |
2.8 |
7 |
2 |
|
YC90L-2 |
2 |
1.5 |
220 |
50 |
11.5 |
2800 |
72 |
0.82 |
2.8 |
7 |
2 |
|
YC100L-2 |
3 |
2.2 |
220 |
50 |
16.5 |
2820 |
74 |
0.82 |
2.5 |
7 |
2 |
|
YC112M1-2 |
4 |
3 |
220 |
50 |
21.4 |
2820 |
76 |
0.84 |
2.2 |
7 |
2 |
|
YC112M2-2 |
5 |
3.7 |
220 |
50 |
24.8 |
2820 |
79 |
0.86 |
2.2 |
7 |
2 |
|
YC80a-4 |
0.33 |
0.25 |
220 |
50 |
3.3 |
1400 |
56 |
0.62 |
3 |
6 |
2 |
|
YC80b-4 |
0.5 |
0.37 |
220 |
50 |
4.4 |
1400 |
60 |
0.64 |
3 |
6 |
2 |
|
YC80C-4 |
0.75 |
0.55 |
220 |
50 |
6.0 |
1400 |
64 |
0.65 |
3 |
6 |
2 |
|
YC90S-4 |
1 |
0.75 |
220 |
50 |
7.1 |
1400 |
67 |
0.72 |
2.8 |
6.5 |
2 |
|
YC90L-4 |
1.5 |
1.1 |
220 |
50 |
9.9 |
1400 |
70 |
0.72 |
2.8 |
6.5 |
2 |
|
YC100L-4 |
2 |
1.5 |
220 |
50 |
13.0 |
1410 |
72 |
0.73 |
2.8 |
6.5 |
2 |
|
YC112M-4 |
3 |
2.2 |
220 |
50 |
18.5 |
1410 |
73 |
0.74 |
2.5 |
6.5 |
2 |
|
YC132Sa-4 |
4 |
3 |
220 |
50 |
22.4 |
1420 |
76 |
0.8 |
2.2 |
6.5 |
2 |
|
YC132Sb-4 |
5 |
3.7 |
220 |
50 |
26.0 |
1430 |
79 |
0.82 |
2.2 |
6.5 |
2 |
|
YC132M-4 |
7.5 |
5.5 |
220 |
50 |
32.1 |
1430 |
82 |
0.95 |
2.2 |
6.5 |
2 |
Fecha técnica
|
Tipo |
Producción |
Voltaje (V) |
Frecuencia (HZ) |
Actual (A) |
Velocidad (r/min) |
Eff (%) |
Factor de potencia |
Torque bloqueado Par nominal Tstart/Tn |
Corriente bloqueada Par nominal Ist/In |
Torque máximo Par nominal Tmax/Tn |
|
| HP | KW | ||||||||||
|
YCL90S-2 |
1.5 |
1.1 |
220 |
50 |
7.2 |
2820 |
73.2 |
0.95 |
2.8 |
6 |
1.8 |
|
YCL90L-2 |
2 |
1.5 |
220 |
50 |
8.9 |
2820 |
76 |
0.97 |
2.8 |
7 |
1.8 |
|
YCL100L-2 |
3 |
2.2 |
220 |
50 |
13.2 |
2830 |
78.8 |
0.96 |
3 |
6.5 |
1.8 |
|
YCL90S-4 |
1 |
0.75 |
220 |
50 |
5.0 |
1400 |
73.3 |
0.93 |
2.8 |
6.5 |
1.8 |
|
YCL90L-4 |
1.5 |
1.1 |
220 |
50 |
7.8 |
1400 |
75 |
0.9 |
2.5 |
6 |
1.8 |
|
YCL100L-4 |
2 |
1.5 |
220 |
50 |
9.3 |
1410 |
79.4 |
0.92 |
2.8 |
7 |
1.8 |
|
YCL112M-4 |
3 |
2.2 |
220 |
50 |
13.6 |
1420 |
81.6 |
0.9 |
2.3 |
6.5 |
1.8 |
|
YCL132Sa-4 |
4 |
3 |
220 |
50 |
18.2 |
1420 |
83.2 |
0.9 |
2.1 |
6.5 |
1.8 |
|
YCL132Sb-4 |
5 |
3.7 |
220 |
50 |
22.0 |
1430 |
84.9 |
0.9 |
2.1 |
6.5 |
1.8 |
|
YCL132M-4 |
7.5 |
5.5 |
220 |
50 |
32.5 |
1430 |
85 |
0.9 |
2 |
6.5 |
1.8 |
