Custom Motor de regulación de velocidad electromagnética serie YCT Suppliers, OEM Factory

Motor de regulación de velocidad electromagnética serie YCT Custom

Inicio / Productos / Motor Asíncrono Trifásico / Serie YCT / Motor de regulación de velocidad electromagnética serie YCT

Descripción del producto

El motor de velocidad variable serie YCT es un motor de corriente alterna de par constante y regulación de velocidad. A través del deslizamiento del embrague electromagnético, se conecta el motor de accionamiento con el tacogenerador, y generalmente se utiliza junto con controladores de las series JD, TXZ o CTK, formando un sistema de accionamiento de velocidad continua con retroalimentación negativa de velocidad. Este motor, diseñado según los estándares unificados de China, permite una regulación de velocidad continua, estable y con un amplio rango. Presenta ventajas como alta eficiencia, bajo nivel de ruido, baja vibración, alta fiabilidad y apariencia estética. Cumple con las normas de la Comisión Electrotécnica Internacional (IEC). Los motores de regulación electromagnética de esta serie se utilizan ampliamente en la industria textil, impresión y teñido, alimentos, productos químicos, papel, cemento, caucho, plásticos, cables, metalurgia, minería, entre otras aplicaciones que requieren velocidad variable con par constante. Son especialmente adecuados para ventiladores y bombas, donde el par de carga disminuye con la velocidad. La regulación de velocidad permite ajustar el caudal o la presión, logrando así un notable efecto de ahorro energético.

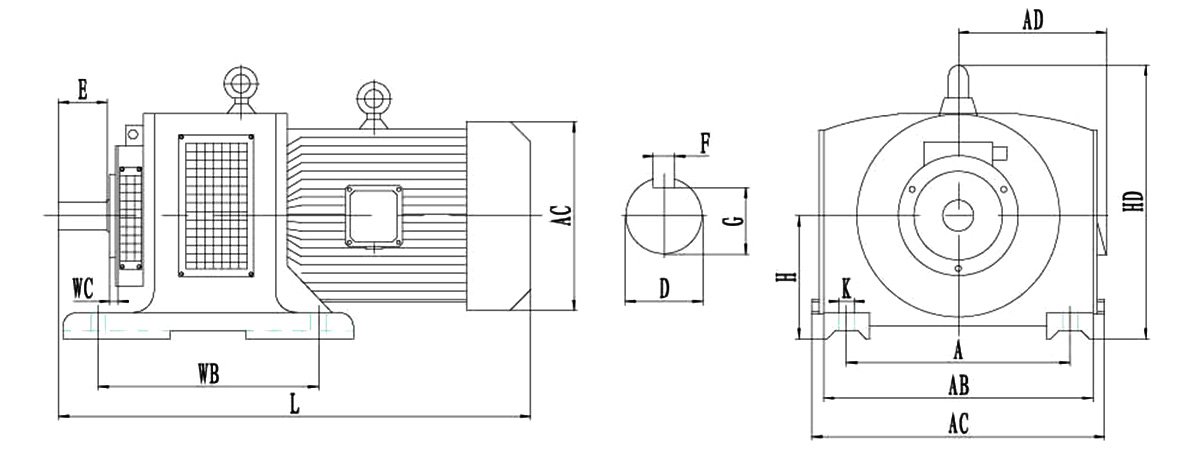

Montaje en serie y dimensiones generales

Marco		Medición de fijación										Tamaño de la figura					Pesar (kg)
Tamaño		A	A/2	WB	WC	D	E	F	G	H	K	AB	AC	AD	HD	L
90	-4A	160	80	178	40	18	40	6	14.5	90	10	190	200	130	220	480	34
	-4B																36
112	-4A	190	95	210	40	19	40	6	15.5	112	12	240	260	150	280	520	50
	-AB																53
132	-4A	216	108	241	40	24	50	8	20	132	12	285	310	165	330	570	75
	-4B															585	77
160	-4A	254	127	267	45	28	60	8	24	160	15	330	350	185	385	665	112
	-4B																117
180	-4A	279	139.5	305	45	28	60	8	24	180	15	365	385	195	430	700	157
200	-4A	318	159	356	50	38	80	10	33	200	19	410	430	235	485	820	224
	-4B															860	244
225	-4A	356	178	406	56	42	110	12	37	225	19	465	485	270	545	980	390
	-4B															1025	420
250	-4A	406	203	457	63	48	110	14	42.5	250	24	520	540	295	595	1130	460
	-4B															1170	502
280	-4A	457	228.5	508	70	55	110	16	49	280	24	575	595	320	665	1280	632
315	-4A	508	254	560	89	60	140	18	53	315	28	645	670	345	770	1400	810
	-4B															1425	850
	-4A	610	305	630	108	65	140	18	58	355	28	755	780	390	890	1550	1510
355	-4B					75		20	67.5					420		1630	1655
	-4C															1680	1700
400	-4A	630	315	710	108	80	170	22	71	400	32	800	820	500	820	1980	2050
	-4B															2030	2150
	-4C																2210
