Motor de inducción monofásico de doble condensador serie ML/YL Custom

Inicio / Productos / Motor Monofásico / Serie ML/YL / Motor de inducción monofásico de doble condensador serie ML/YL

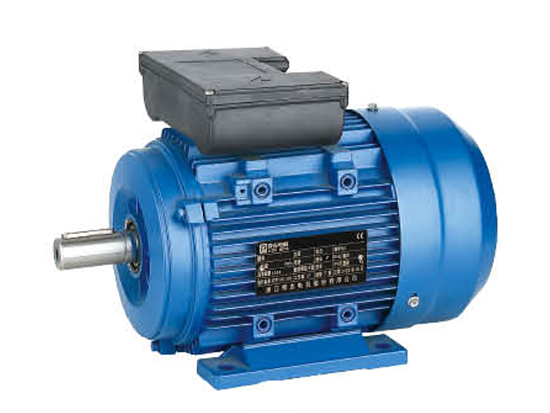

Descripción del producto

Los motores monofásicos de doble condensador serie ML/YL se fabrican conforme a los estándares nacionales. Tienen buen rendimiento de arranque y operación, bajo ruido, volumen reducido, peso ligero y mantenimiento sencillo. Se usan ampliamente en compresores de aire, bombas, máquinas de agua, refrigeración, equipos médicos y maquinaria ligera, especialmente donde solo se dispone de alimentación monofásica.

Condiciones de operación

Temperatura ambiente: -15℃ ≤ T ≤ 40℃

Altitud: no superior a 1000 m

Voltaje: 380V

Frecuencia: 50Hz, 60Hz

Protección: IP54, IP55

Aislamiento: clase B/F

Enfriamiento: IC0141

Régimen: S1 (continuo)

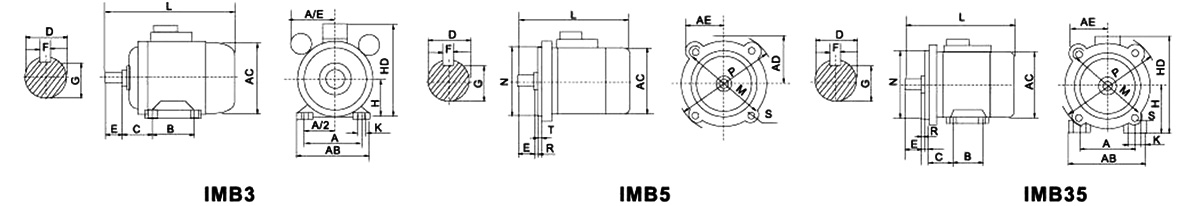

Dimensiones generales y de instalación

Frame No.	Dimensiones de montaje(mm)															Dimensiones generales(mm)
Frame No.	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AD	HD	L
71	112	90	45	14	30	5	11	71	7	130	110	160	0	10	3.5	145	145	140	180	255
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	160	165	150	200	295
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	370
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	160	240	400
100L	160	140	63	28	60	8	24	100	12	215	180	250	0	15	4.0	205	220	180	260	430
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	250	190	300	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	210	350	525
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	210	350	553

Fecha técnica

Tipo	Producción		Voltaje (V)	Frecuencia Hz	Actual (A)	Velocidad (r/min)	Eff (%)	Factor de potencia	Torque bloqueado Par nominal Tstart/Tn	Corriente bloqueada Par nominal Ist/In	Torque máximo Par nominal Tmax/Tn
Tipo	HP	KW	Voltaje (V)	Frecuencia Hz	Actual (A)	Velocidad (r/min)	Eff (%)	Factor de potencia	Torque bloqueado Par nominal Tstart/Tn	Corriente bloqueada Par nominal Ist/In	Torque máximo Par nominal Tmax/Tn
ML/YL7112	0.5	0.37	220	50	2.73	2800	67	0.92	1.8	6.0	1.8
ML7YL7122	0.75	0.55	220	50	3.88	2800	70	0.92	1.8	6.0	1.8
MIJYL7114	0.33	0.25	220	50	1.99	1400	62	0.92	1.8	6.0	1.8
ML7YL7124	0.5	0.37	220	50	2.81	1400	65	0.92	1.8	6.0	1.8
MUYL8012	1	0.75	220	50	5.15	2800	72	0.92	1.8	6.0	1.8
ML/YL8022	1.5	1.1	220	50	7.02	2800	75	0.95	1.8	6.0	1.8
MUYL8014	0.75	0.55	220	50	4.0	1400	68	0.92	1.8	6.0	1.8
ML/VL8024	1	0.75	220	50	5.22	1400	71	0.92	1.8	6.0	1.8
ML/YL90S-2	2	1.5	220	50	9.4	2800	76	0.95	1.8	6.0	1.8
MI7YL90L-2	3	2.2	220	50	13.7	2800	77	0.95	1.8	6.0	1.8
MUYL90S-4	1.5	1.1	220	50	7.21	1400	73	0.95	1.8	6.0	1.8
ML/YL90L-4	2	1.5	220	50	9.57	1400	75	0.95	1.8	6.0	1.8
ML7YL100L-2	4	3	220	50	18.4	2820	78	0.95	1.8	6.0	1.8
MUYL100L1-4	3	2.2	220	50	13.9	1410	76	0.95	1.8	6.0	1.8
MUYL100L2-4	4	3	220	50	18.6	1420	77	0.95	1.8	6.0	1.8
ML/YL112M-2	5	3.7	220	50	22.2	2820	80	0.95	1.8	6.0	1.8
ML/YL112M-4	3	2.2	220	50	13.9	1410	76	0,95	1.8	6.0	1.8
ML7YL112M1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
ML/YL112M2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
ML/YL132S1-4	4	3	220	50	18.17	1420	77	0.95	1.8	6.0	1.8
ML/YL132S2-4	5	3.7	220	50	23	1430	78	0.95	1.8	6.0	1.8
ML7YL132M-4	7.5	5.5	220	50	32.5	1430	81	0.95	1.8	6.0	1.8

*. 1110V, 110V/220V,60Hz etc. Los modelos están disponibles a pedido.
